5.12 Stitch length
5.12.1 Adjusting the stitch length
Depending on the equipment the machine has 1 or 2 adjusting
wheels for the stitch length.
The stitch length can be adjusted continuously between
0 – 12 mm.

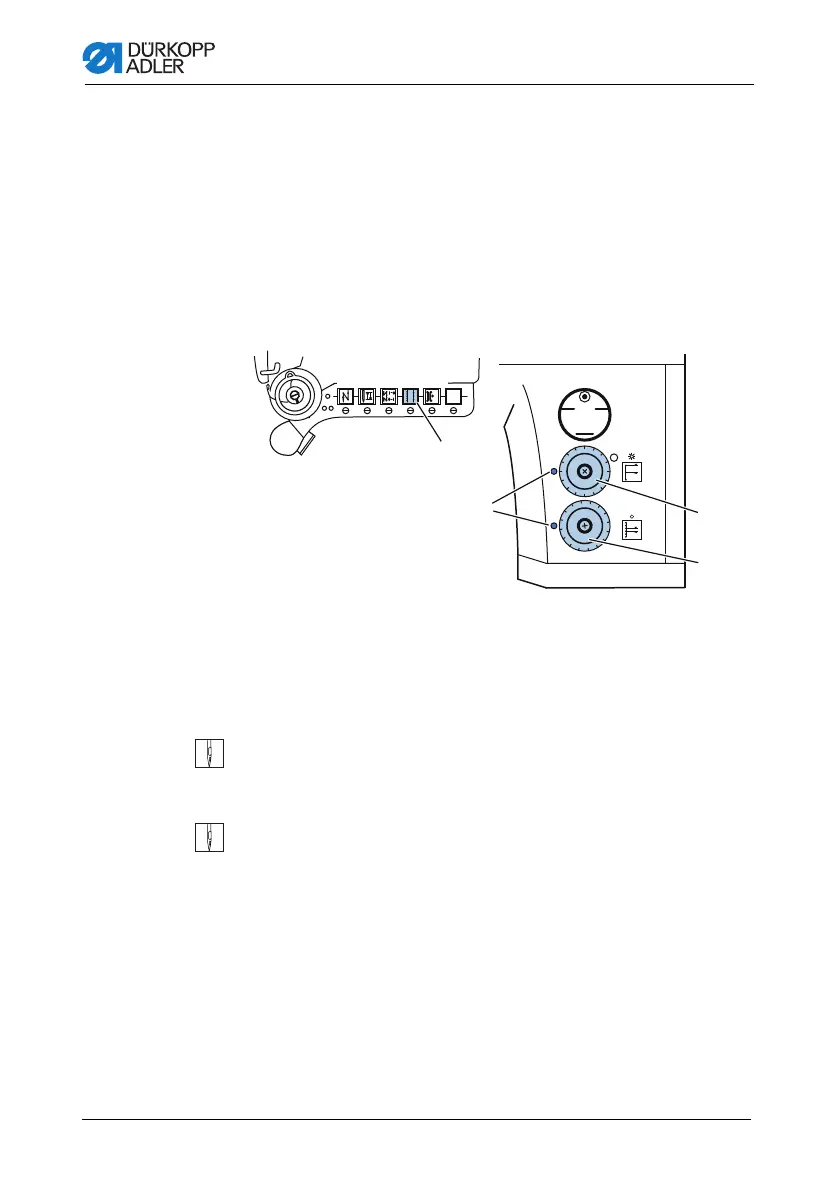

Figure 31: Adjusting wheels for the stitch length
To reduce the stitch length:
1. Turn the adjusting wheel clockwise.
To increase the stitch length:
1. Turn the adjusting wheel counterclockwise.
0
1
2
4
3
5
6
7
8
9
10
11
12
0
1
2
4
3
5
6
7
8
9
10
11
12
mm
mm
MAX
MIN
+
+/–
+/–
4
3
2
1
(1) - Keypad key for the stitch length
(2) - Adjusting marks for indicating
the stitch length selected
(3) - Lower adjusting wheel for the
smaller stitch length
(4) - Upper adjusting wheel for the
larger stitch length
