Set-up instructions
Operating manual 867 Version 01.0 - 12/2012 77
7.3 Fitting the frame components

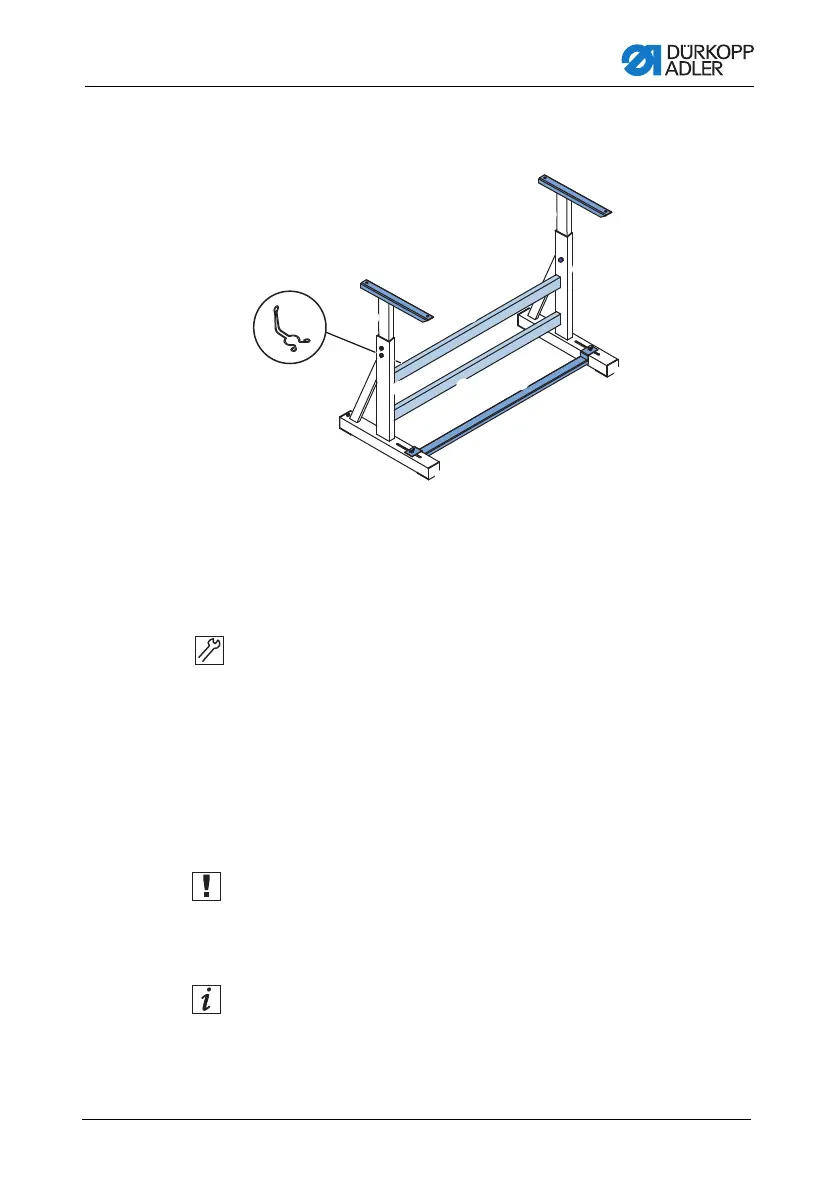

Figure 48: Fitting the frame components
1. Screw the cross bar(s)* (4) onto the frame bars (3).
2. Screw the oil can holder (8) at the rear to the upper cross
bar (4).
3. Screw the cross strut (6) onto the foot struts (5).
4. Insert the inner bars (2) in such a way that the longer end of
the head section (1) is above the longer end of the foot
struts (5).
5. Screw the inner bars (2) tight in such a way that both head
sections (1) have the same height.
6. Important: Turn the adjusting screw (7) so that the frame has
even contact with the ground.
* Frame components for long arm machines have 2 cross bars
and the other frame components have 1 cross bar.
1
2
3
4
4
5
6
5
7
3
2
1
8
(1) - Head sections of the inner bars
(2) - Inner bars
(3) - Frame bars
(4) - Cross bar(s)*
(5) - Frame foot struts
(6) - Cross strut
(7) - Adjusting screw
(8) - Oil can holder
