Set-up instructions
78 Operating manual 867 Version 01.0 - 12/2012
7.4 Completing the table plate
The table plate belongs to the optional delivery scope.
Drawings are provided in Appendix to allow you to inde-
pendently assemble a table plate.
7.4.1 Completing a short arm table plate

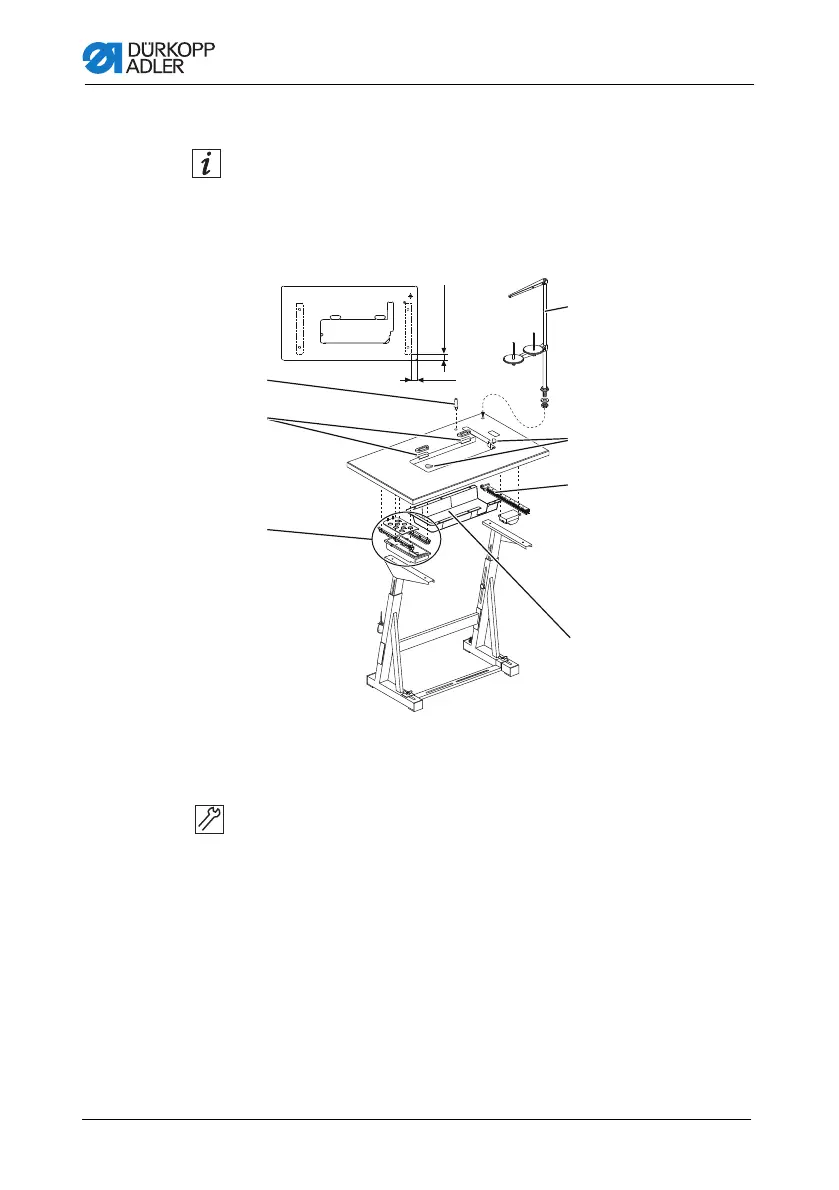

Figure 49: Completing a short arm table plate
1. Screw the drawer (3) with the left-hand bracket to the under-
side of the table plate.
2. Screw the oil pan (4) in place under the recess for the machine.
3. Screw the cable duct (5) to the underside of the table plate.
4. Insert the thread reel holder (7) in the hole.
5. Fasten the thread reel holder (7) with nut and washer.
6. Screw the thread real holder and the unwinding bracket onto
the thread reel holder (7) in such a way that they are exactly
opposite each other.
7. Insert the upper section support (1) in the hole.
8. Fit the lower part of the hinge into the recess (2) and screw
tight.
9. Fit the rubber corners in the corner protrusions (6).
60 mm (500 mm)
40 mm
1
2
3
4
5
6
7
(1) - Upper section support
(2) - Recess for hinge lower parts
(3) - Drawer
(4) - Oil pan
(5) - Cable duct
(6) - Corner projections
(7) - Thread reel holder
