Operating instructions
Operating manual 867 Version 01.0 - 12/2012 47
5.10.1 Removing blocking of the adjusting wheel
Automotive:
Blockable
adjusters
Machines with blockable adjusters are used especially in the
automotive sector. With these machines the blocking must be
removed before the sewing foot pressure can be adjusted.

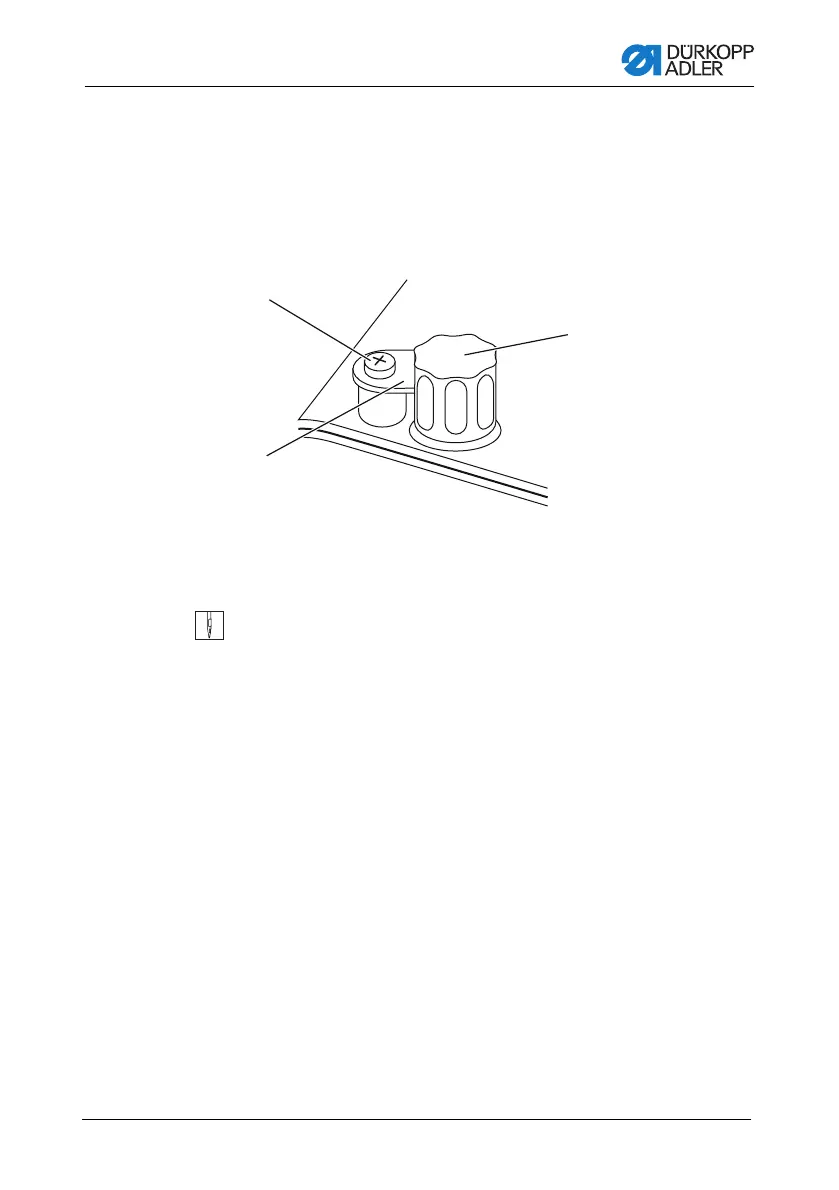

Figure 27: Removing blocking of the sewing foot pressure adjustment
wheel
1. Loosen the fastening screw (1).
2. Remove the retaining plate (2).
3. Turn the adjusting wheel for the sewing foot pressure (3)
( Section 5.10 Setting the sewing foot pressure, Page 46).
4. Fit the retaining plate (2).
5. Tighten the fastening screw (1).
3
1
2
(1) - Fastening screw
(2) - Retaining plate
(3) - Adjusting wheel for the sewing
foot pressure
