Operating instructions
44 Operating manual 867 Version 01.0 - 12/2012
5.8 Venting the sewing foot
ECO machines: Mechanically via the knee lever
CLASSIC machines: Electro-pneumatically via a foot pedal
5.8.1 Mechanical lifting with the knee lever

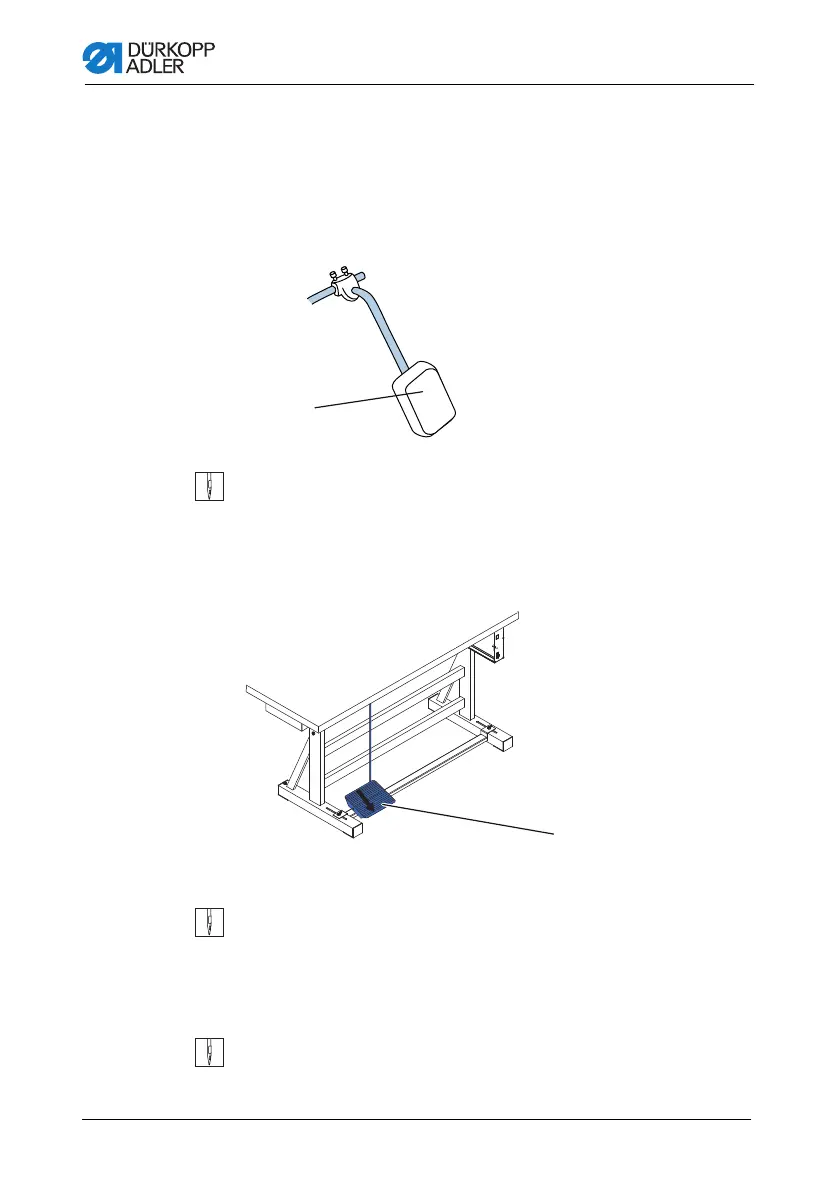

Figure 23: Mechanical sewing foot lifting with the knee lever
1. Push the knee lever (1) to the right.
The sewing feet remain open while the knee lever is
pushed to the right.
5.8.2 Electro-pneumatic lifting with a foot pedal
Figure 24: Electro-pneumatic sewing foot lifting with a foot pedal
1. Press the foot pedal (1) half the way back.
The machine stops and raises the sewing feet.
The sewing feet remain up as long as the foot pedal is
pressed halfway back.
or
1. Press the foot pedal (1) fully back.
The thread cutter is activated and the sewing feet are
raised.
1
(1) - Knee lever
1
(1) - Foot pedal
