DURKOPP ADLER 867 Operating Manual

Set-up instructions
100 Operating manual 867 Version 01.0 - 12/2012
7.12.8 Fitting the M-Control circuit board

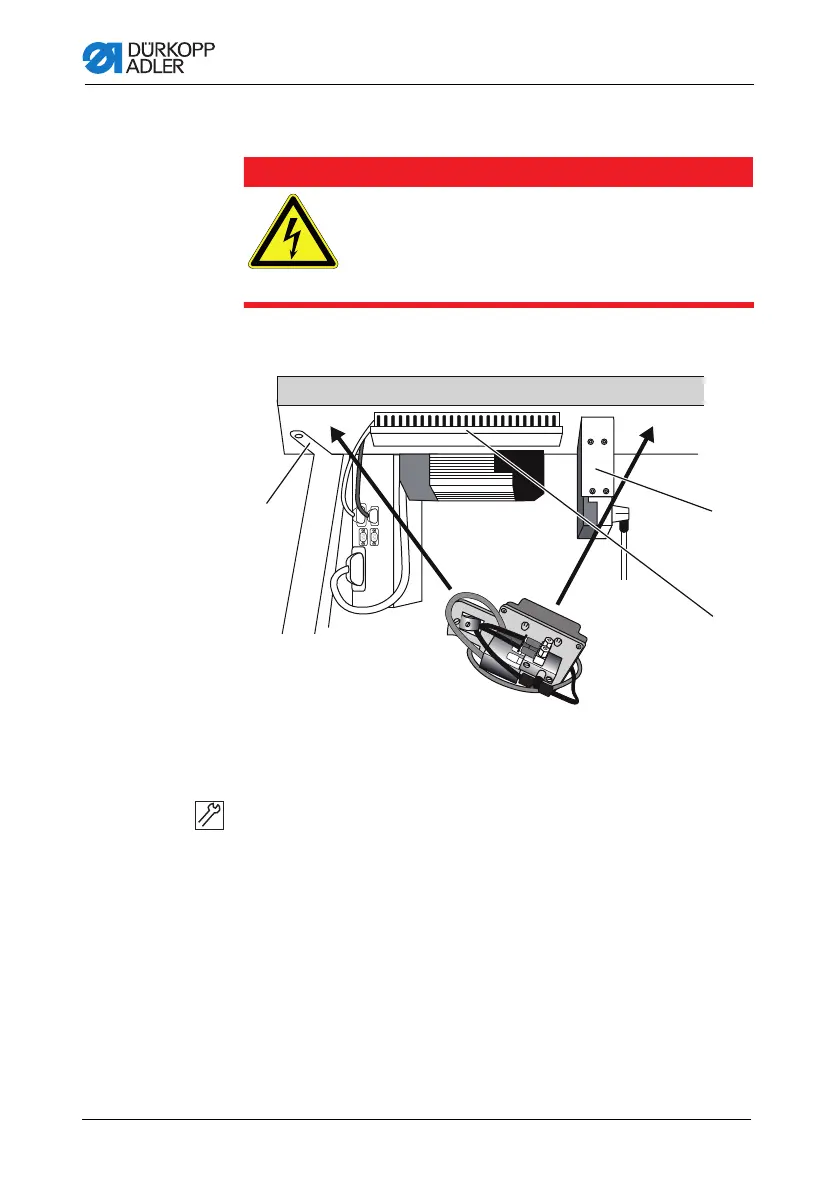

Figure 69: Fitting the circuit board
1. Fitting the circuit board:
• Machines with a binder:
between the frame (1) and cable duct (2)
• Machines with switchable needle bars:
At the right next to the setpoint device angle bracket (3)
Danger to life due to electric shock.
Disconnect the power plug before fitting the circuit
board.
Make sure the power plug cannot be unintention-
ally reinserted.
DANGER
1
2
3
(1) - Frame (2) - Cable duct
(3) - Setpoint device angle bracket
