DURKOPP ADLER 867 Operating Manual

Set-up instructions
94 Operating manual 867 Version 01.0 - 12/2012
7.12.3 Establishing equipotential bonding
The earthing cable conducts away any static charging of the
machine upper section.

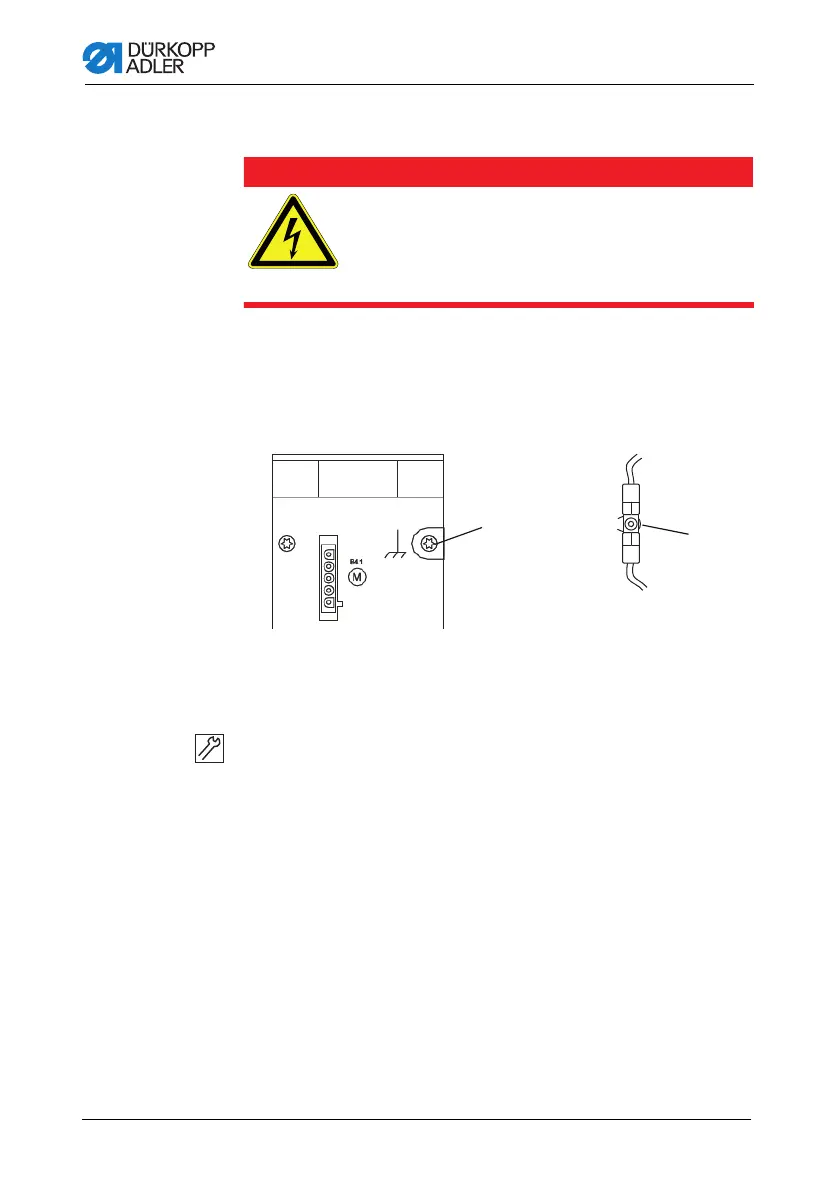

Figure 65: Establishing equipotential bonding
1. Tilt the machine upper section.
2. Feed the earthing cable from the connection (1) on the rear
side of the controller through the cutout in the table plate and
plug it onto the tab connector (2) on the base plate.
Danger to life due to electric shock.
Disconnect the power plug before establishing
equipotential bonding.
Make sure the power plug cannot be unintention-
ally reinserted.
DANGER
2
1
(1) - Connection at the controller (2) - Tab connector

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
