Device description
Operating manual 867 Version 01.0 - 12/2012 21
4 Device description

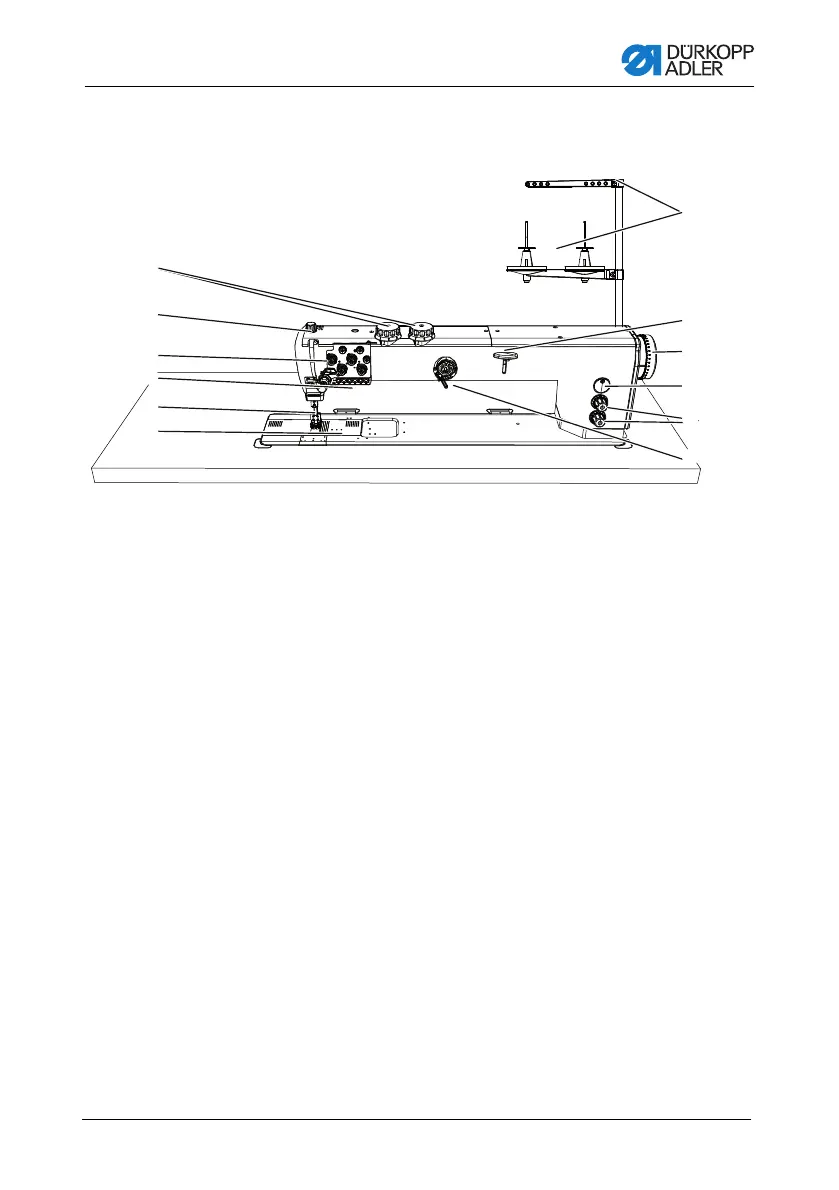

Figure 1: General overview - Long arm machine example
4
3
2
1
5
6
<
^
0
9
8
7
(1) - Adjusting wheels for the sewing foot stroke
(2) - Adjusting wheel for the sewing foot pressure
(3) - Thread tensioners
(4) - Keypad on the machine arm
(5) - Sewing foot with needle
(6) - Hook (under the needle plate)
(7) - Bobbin winder for the hook thread
(8) - Adjusting wheels for the stitch length
(9) - Oil level indicator
(10) - Handwheel
(11) - Stitch adjustment lever
(12) - Unwinding bracket with thread reel holder

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
