Maintenance
68 Operating manual 867 Version 01.0 - 12/2012

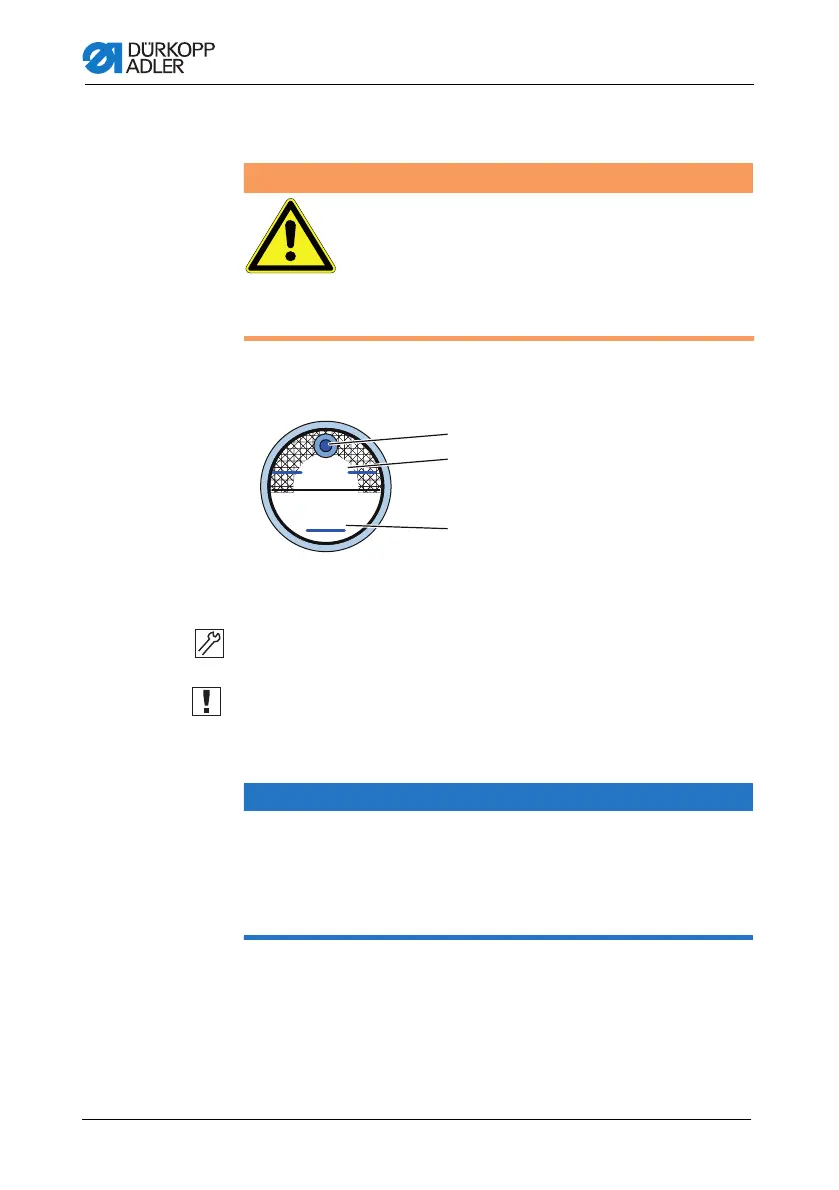

6.2 Checking the oil level
Figure 43: Oil level indicator
Checking the oil level
1. Check the oil level indicator every day:
Important: The oil level must always be between the minimum
level marking (3) and the maximum level marking (2).
Skin injuries due to contact with oil.
Oil can cause a rash if it comes into contact with the
skin.
Avoid any skin contact with the oil.
If oil gets on your skin, wash the affected skin areas
thoroughly.
WARNING
MAX
MIN
1
2
3
(1) - Refill opening
(2) - Maximum level marking
(3) - Minimum level marking
Machine damage possible due to incorrect oil level.
Too little or too much oil can cause damage to the machine.
Check the oil level on a daily basis and top up oil so that the
oil level is always between the minimum and maximum mark-
ings.
ATTENTION

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
