DURKOPP ADLER 867 Operating Manual

Set-up instructions
Operating manual 867 Version 01.0 - 12/2012 75
7 Set-up instructions
7.1 Checking the scope of delivery
Important: The scope of delivery depends on your specific order.
1. Prior to set-up, check that all parts are present.

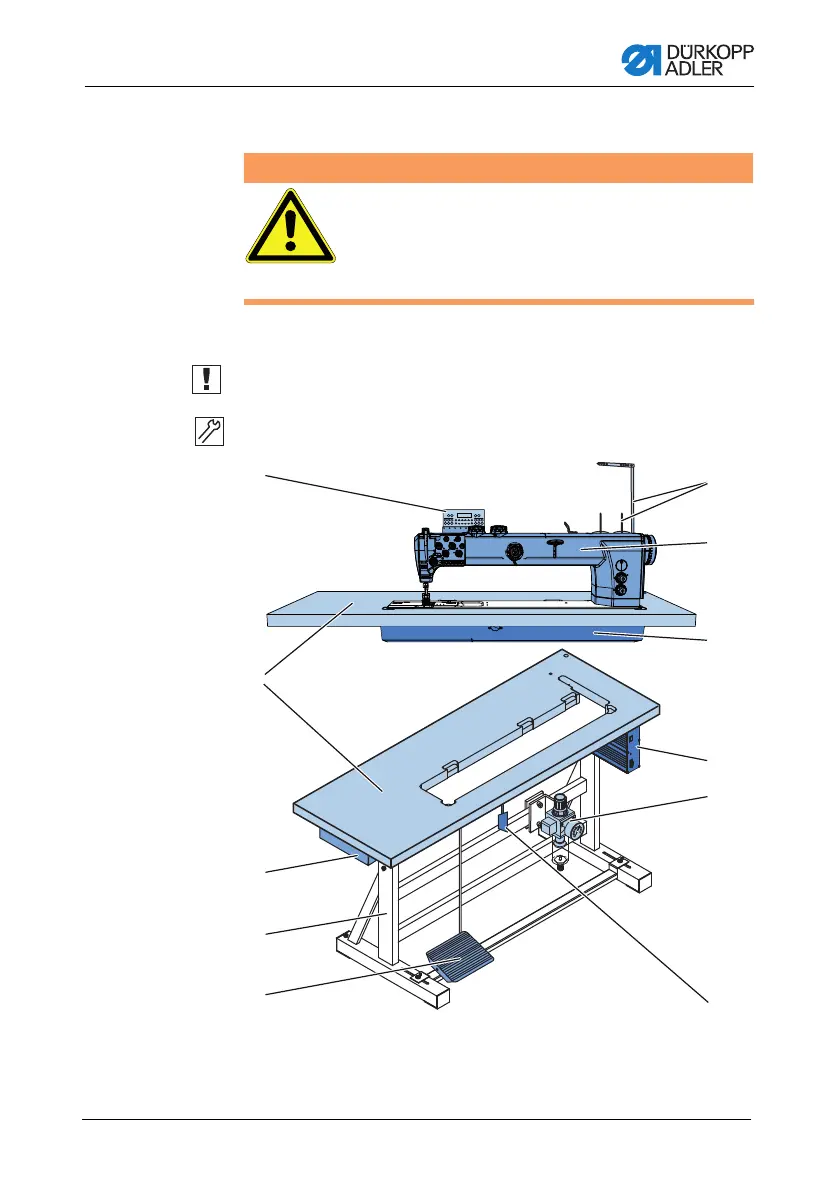

Figure 47: Scope of delivery (Long arm machine example)
Risk of injury.
The machine may only be set up by trained special-
ists.
Wear safety gloves and safety shoes when unpack-
ing and setting up.
WARNING
0
2
8
4
6
10
^
0
9
8
7
6
5
4
3
2
1
(1) - Control panel
(2) - Table plate
(3) - Drawer
(4) - Frame
(5) - Pedal
(6) - Knee lever/switch
(7) - Maintenance unit
(8) - Control
(9) - Oil pan
(10) - Machine upper
section
(11) - Thread reel holder

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
