Set-up instructions
Operating manual 867 Version 01.0 - 12/2012 85
7.8 Inserting the machine upper section

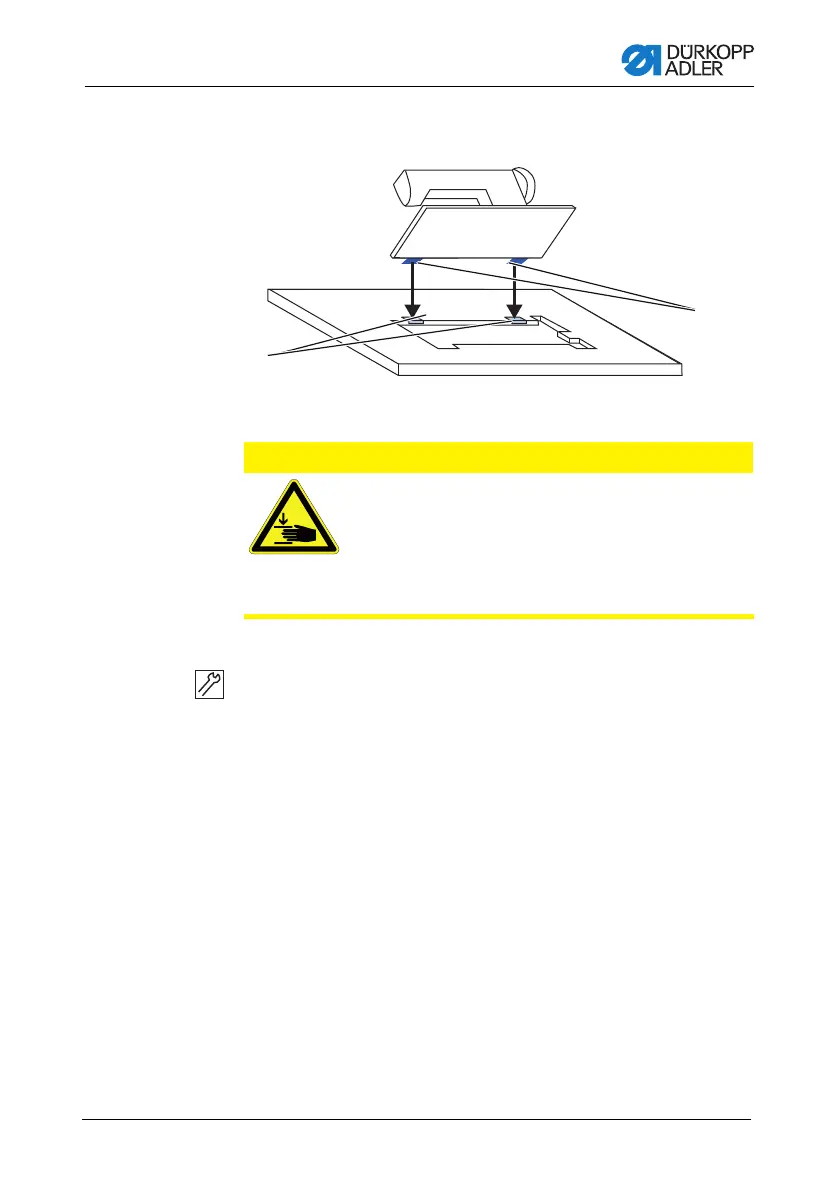

Figure 55: Inserting the machine upper section
1. Screw the upper hinge parts (2) onto the machine upper sec-
tion.
2. Fit the machine upper section from above at an angle of 45°.
3. Insert the upper hinge parts (2) into the rubber inlays (1).
4. Fold the machine upper section down and insert it in the recess.
2
1
(1) - Rubber inlays (2) - Hinge upper parts
Risk of crushing.
The machine upper section is heavy.
Take care not to jam your hands when fitting the
machine upper section.
This especially applies when fitting the hinge upper
parts into the rubber inlays.
WARNING
