DURKOPP ADLER 867 Operating Manual

Set-up instructions
88 Operating manual 867 Version 01.0 - 12/2012
7.10.2 Fitting the electric knee lever

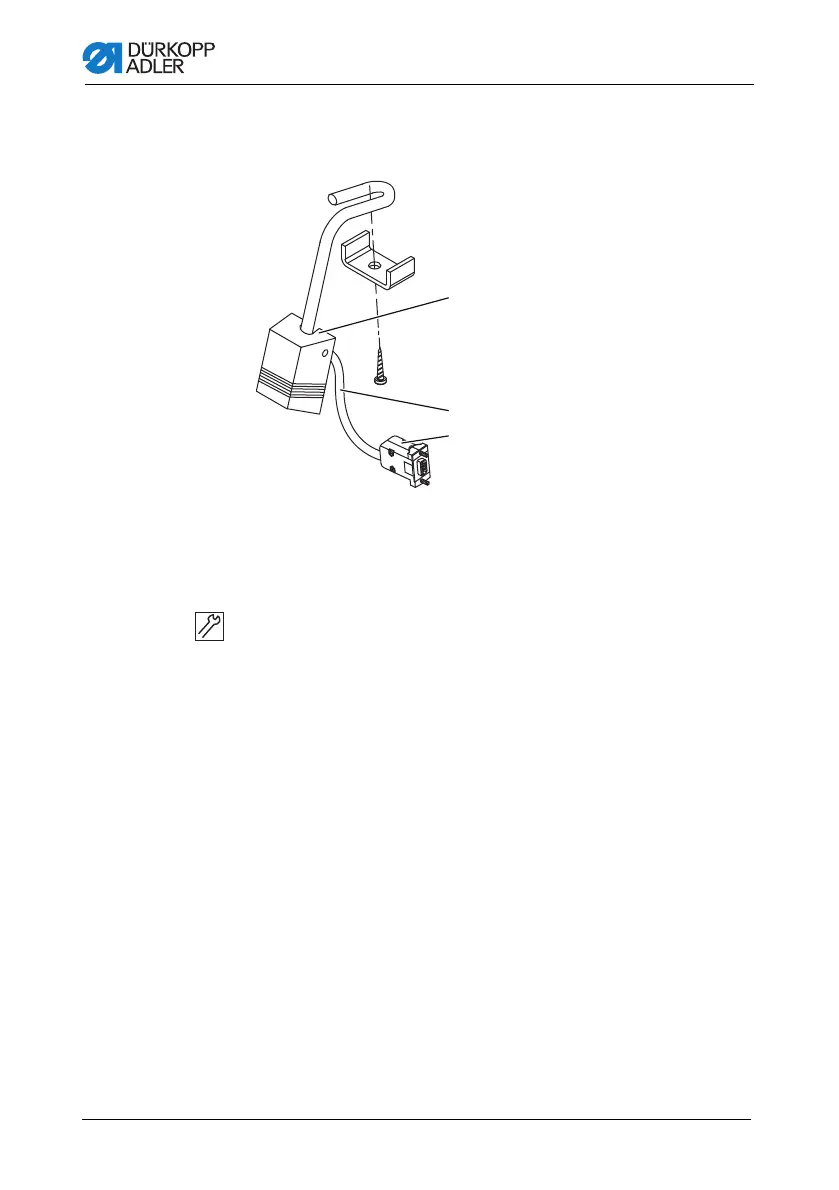

Figure 58: Fitting the electric knee lever
1. Screw the knee lever (1) in front of the oil pan firmly in place
under the table plate.
2. Guide the connecting cable (2) to the back between the oil
pan and the control.
3. Insert the plug (3) of the connecting cable in the socket of the
control.
1
2
3
(1) - Knee switch (2) - Connecting cable
(3) - Plug

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
