Set-up instructions
84 Operating manual 867 Version 01.0 - 12/2012
7.7.2 Fit the pedal and setpoint device

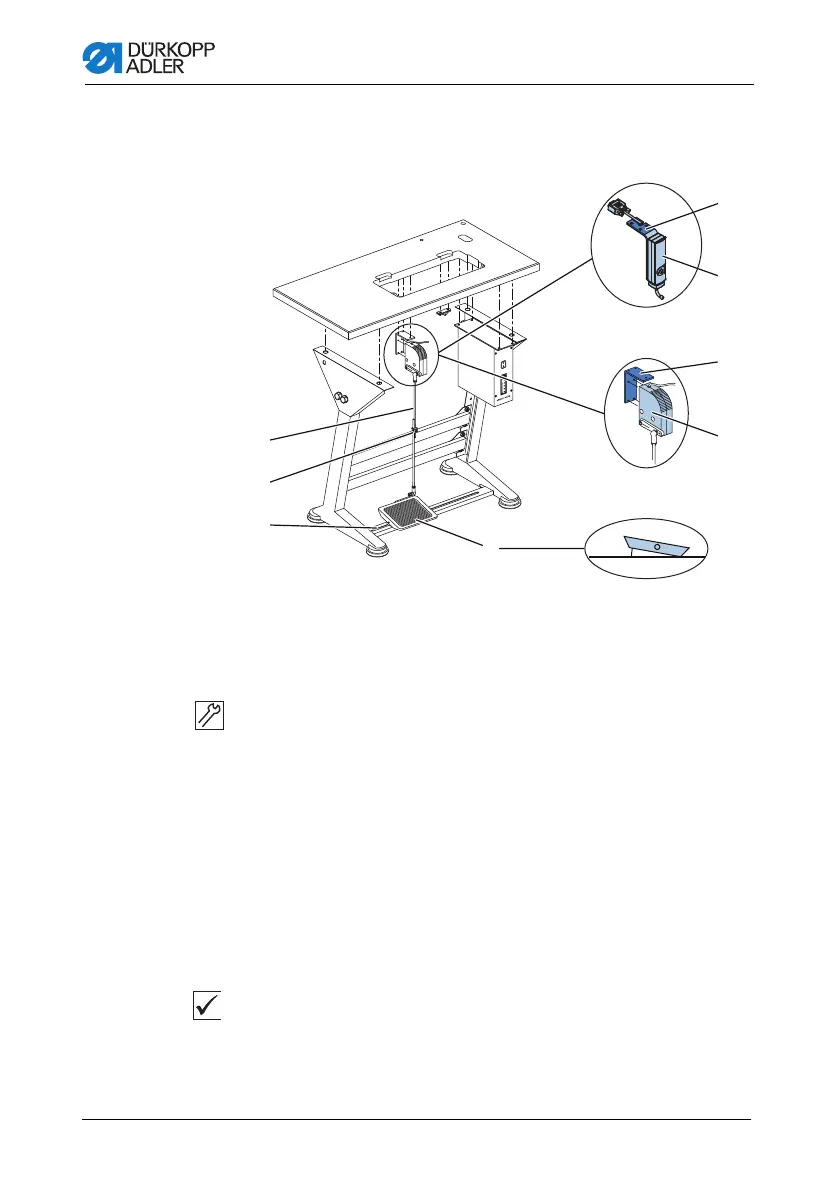

Figure 54: Fitting the setpoint device
1. Fit the pedal (4) on the cross strut (3) and align it in such a
way that the middle of the pedal is under the needle. The cross
strut has elongated holes to allow alignment of the pedal.
2. Screw the pedal (4) firmly onto the cross strut (3).
3. Screw the angle piece (6) under the table plate so that the
pedal rod (1) runs to the pedal (4) at right-angles to the setpoint
device (5).
4. Screw the setpoint device (6) onto the angle piece (5).
5. Hang the pedal rod (1) with the ball socket on the setpoint
device (5) and the pedal (4).
6. Pull the pedal rod (1) to the correct length:
Correct setting: 10° inclination with pedal (4) released
7. Tighten the screw (2).
SWG DAC
SWG Efka
10°
1
2
3
6
5
6
5
4
(1) - Pedal rod
(2) - Screw
(3) - Cross strut
(4) - Pedal
(5) - Setpoint device
(6) - Angle
