5.14 Switching the binder
On machines with a binder the + and – above the needle bar
defined the path followed by the binder.

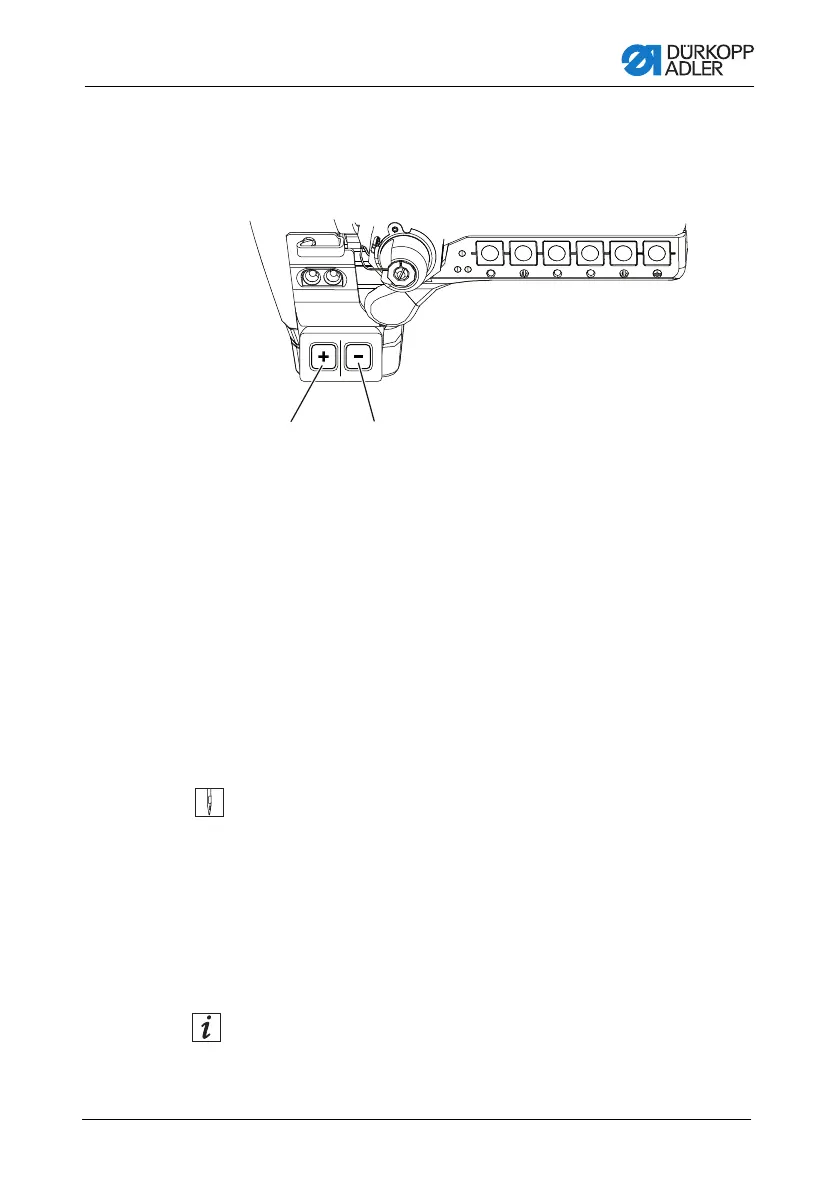

Figure 38: Switching the binder
• No key pressed:
The binder follows the same path as the transporter.
• Plus key pressed: Bind an outer bow
The binder follows a longer path.
• Minus key pressed: Bind an inner bow
The binder follows a shorter path.
When the machine is switched on the binder always follows the
same path as the transporter - regardless of which key was
pressed before the machine was switched off.
Increasing or reducing the binder path:
1. Press the plus or minus key.
The pressed key lights up.
The binder follows a larger or smaller path than the trans-
porter.
2. Press the currently illuminated key again.
The key does not light up any more.
The binder follows the same path as the transporter.
You cannot directly switch between plus and minus. Deactivate
the respectively illuminated key as described in operating step 2
before switching the other key.
1 2
(1) - Plus key (2) - Minus key
