DURKOPP ADLER 867 Operating Manual

Operating instructions
36 Operating manual 867 Version 01.0 - 12/2012
5.5 Replacing the hook thread bobbin

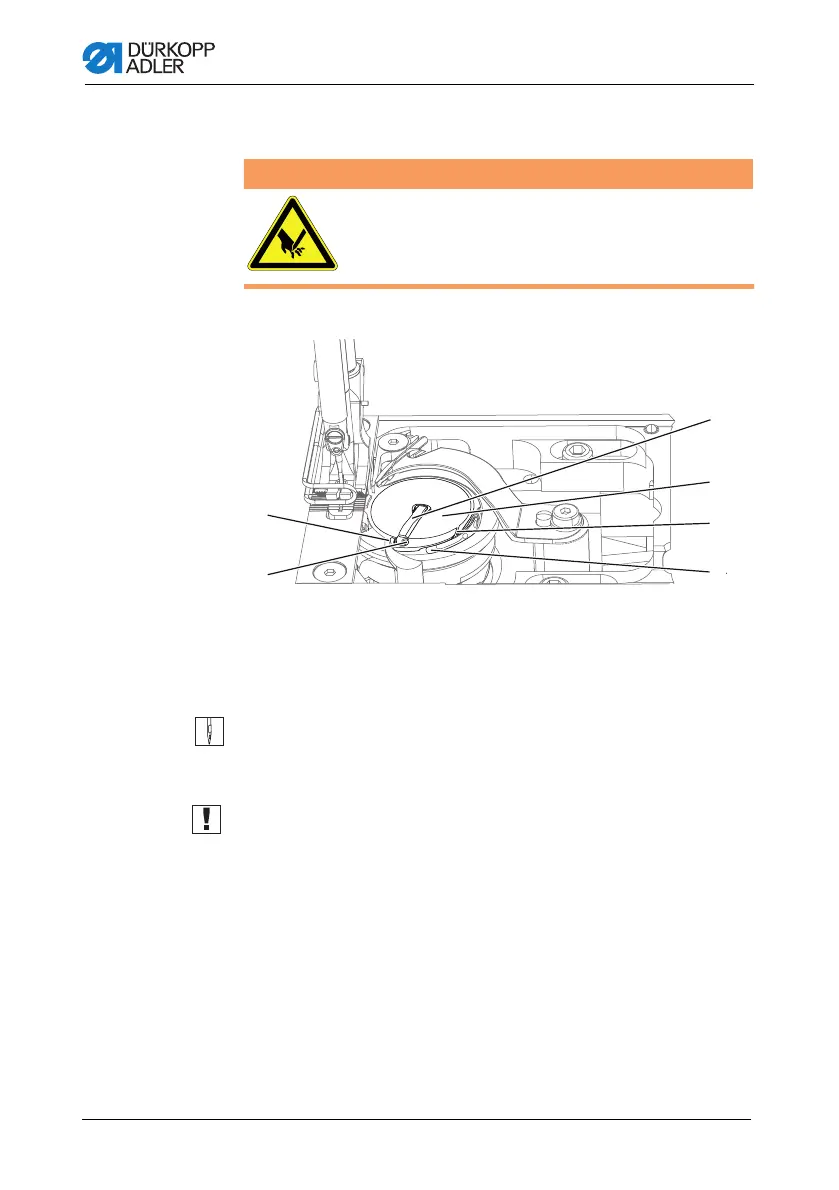

Figure 14: Replacing the hook thread bobbin
1. Fold up the bobbin housing flap (6).
2. Remove the empty bobbin.
3. Insert a full bobbin:
Important: insert the bobbin so that it moves in the opposite
direction of the hook when the thread is pulled out.
4. Feed the hook thread through the slot (4) in the bobbin hous-
ing.
5. Pull the hook thread under the tensioning spring (3).
6. Feed the hook thread through the slot (1) and pull it approx.
3 cm further.
7. Close up the bobbin housing flap (6).
Risk of injury by the needle point and moving
parts.
Switch off the sewing machine before replacing the
hook thread bobbin.
WARNING
5
6
4
3
1
2
(1) - Slot
(2) - Guide
(3) - Tension spring
(4) - Slot
(5) - Bobbin
(6) - Bobbin housing flap

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
