5.2.3 Changing needles on switchable needle bars

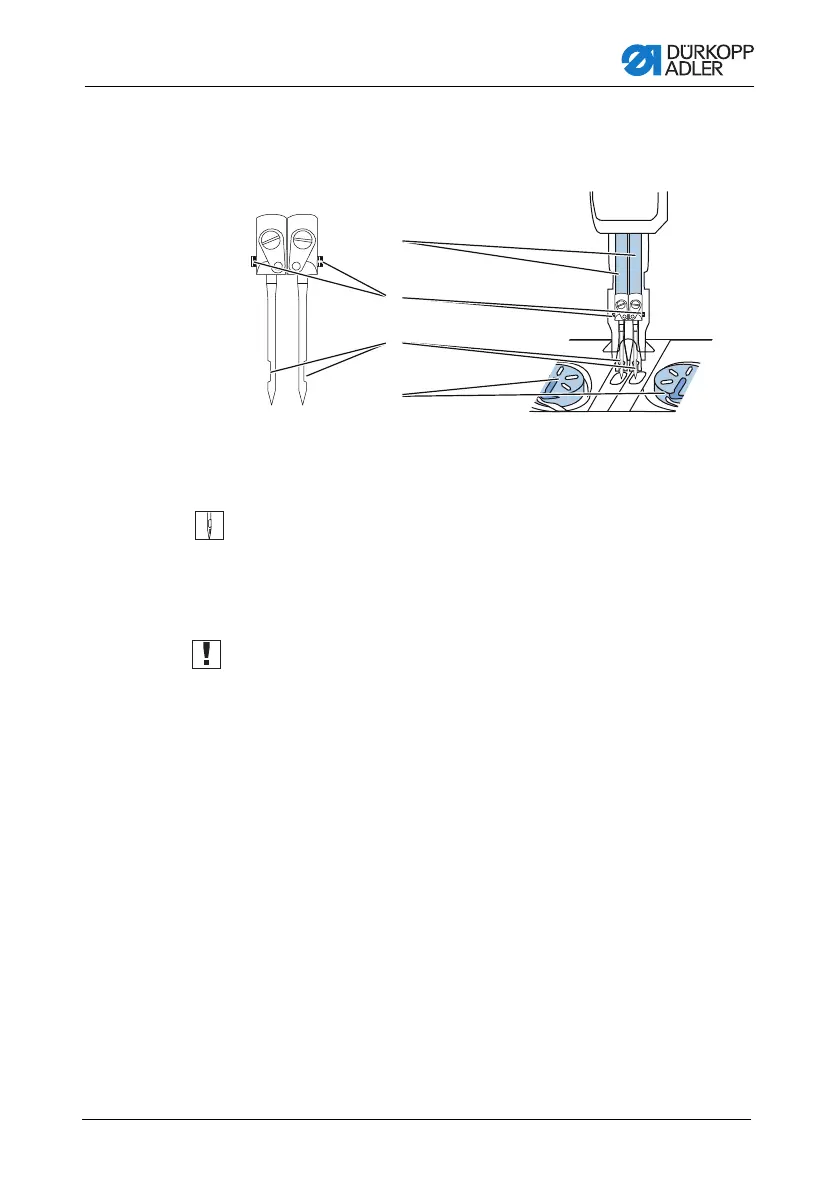

Figure 5: Inserting and changing needles on switchable needle bars
1. Turn the handwheel until the needle bars (1) reach the upper
end position.
2. Loosen the fastening screws (2) on both sides.
3. Pull each of the needles out downwards.
4. Insert new needles on both sides.
5. Important: Align the needles so that the grooves (3) face away
from each other. Each groove then faces the hook that belongs
to this needle.
6. Tighten the fastening screws (2) on both sides.
1
2
3
4
(1) - Needle bar
(2) - Fastening screw
(3) - Groove
(4) - Hook

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
