Operating instructions
Operating manual 867 Version 01.0 - 12/2012 51
The elevated sewing foot stroke is retained as long as the
knee switch is pushed to the right.
To switch off the elevated sewing foot stroke:
Release the knee lever (1).
5.11.4 Removing blocking of the sewing foot pressure
adjustment wheel
Automotive:
Blockable
adjusters
Machines with blockable adjusters are used especially in the
automotive sector. With these machines the blocking must be
removed before the sewing foot stroke can be adjusted.

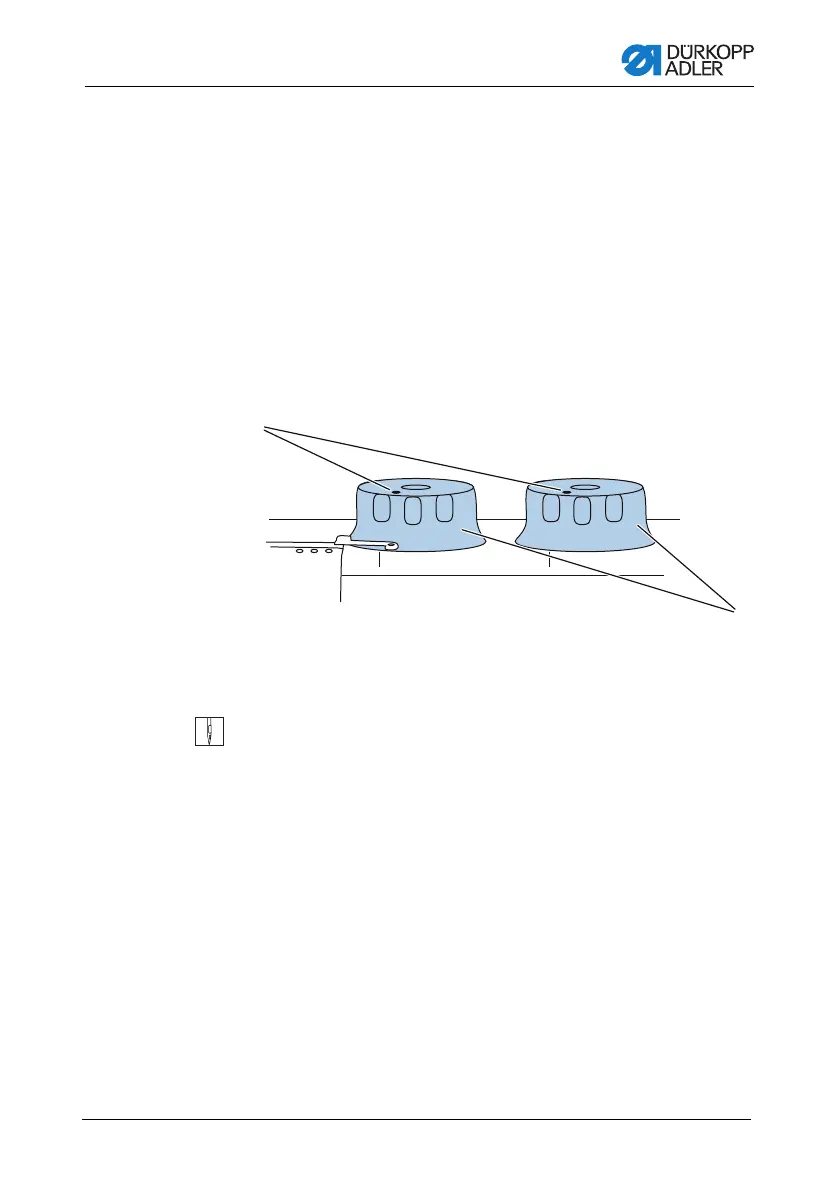

Figure 30: Removing blocking of the sewing foot pressure adjustment
wheel
1. Loosen the fastening screws (2).
2. Turn the adjusting wheel for the sewing foot stroke (1)
( Section 5.11 Setting the sewing foot stroke, Page 48).
3. Tighten the fastening screws (2).
3
4
2
3
4
2
1
2
(1) - Adjusting wheels for the sewing foot stroke
