7.4.2 Completing a long arm table plate

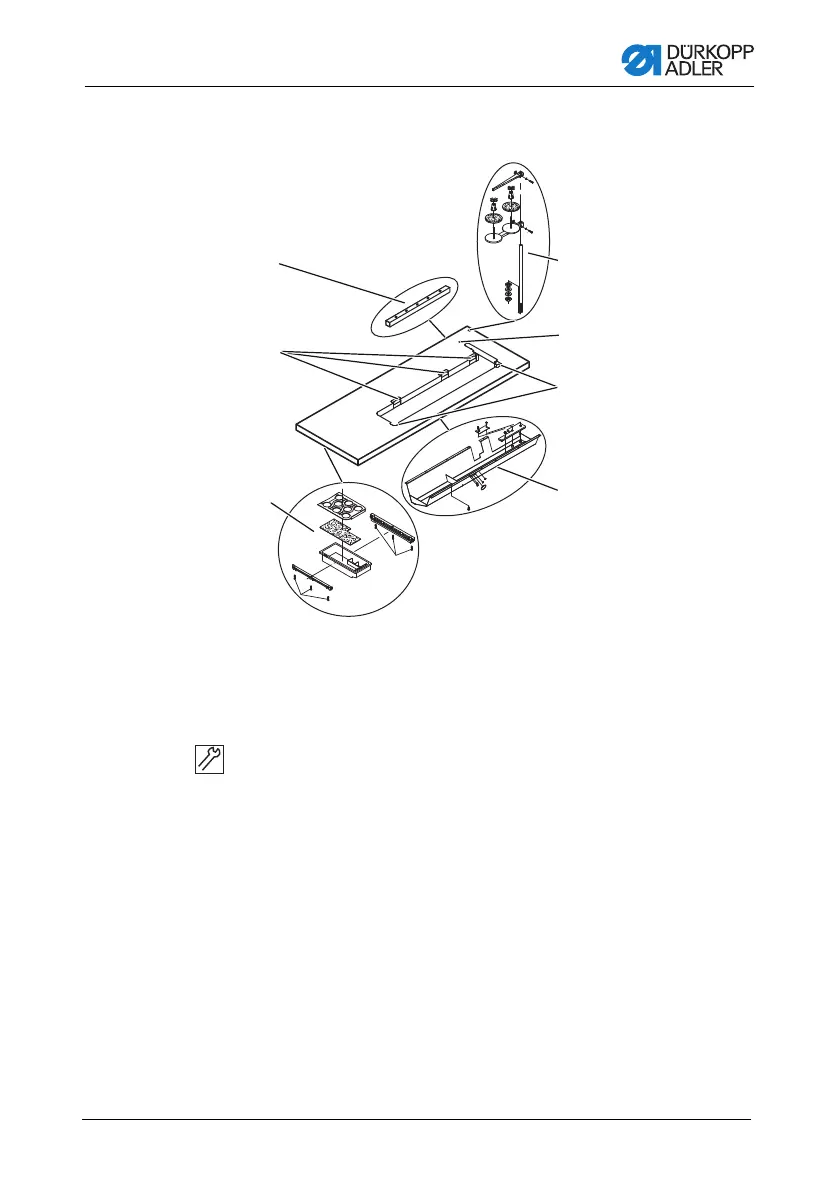

Figure 50: Completing a long arm table plate
1. Screw the drawer (3) with the left-hand bracket to the under-
side of the table plate.
2. Screw the oil pan (4) in place under the recess for the machine.
3. Screw the cable duct (1) to the underside of the table plate.
4. Insert the thread reel holder (7) in the hole.
5. Fasten the thread reel holder (7) with nut and washer.
6. Screw the thread real holder and the unwinding bracket onto
the thread reel holder (7) in such a way that they are exactly
opposite each other.
7. Insert the plug (6) in the hole.
8. Fit the lower part of the hinge into the recess (2).
9. Fit the rubber corners in the corner protrusions (5).
7
6
5
4
3
2
1
(1) - Cable duct
(2) - Cutout for hinge lower parts
(3) - Drawer
(4) - Oil pan
(5) - Corner protrusions
(6) - Hole
(7) - Thread reel holder
