5.12.2 Sewing with 2 stitch lengths

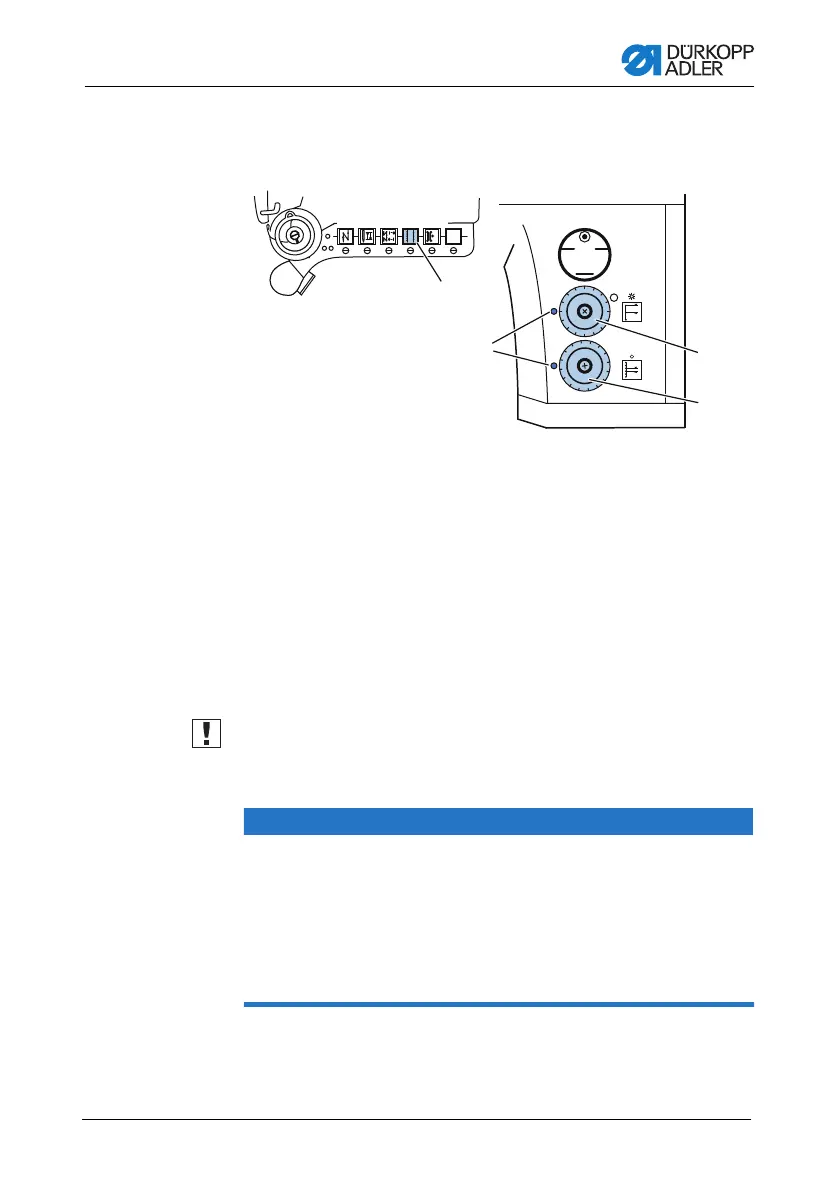

Figure 32: Sewing with 2 stitch lengths
On machines with 2 stitch length adjusting wheels the upper
adjusting wheel (4) is for the larger stitch length and the lower
adjusting wheel (3) is for the smaller stitch length. The adjusting
mark (2) on the left on the wheel indicates the stitch length
selected.
Important: The larger stitch length must not be shorter than the
smaller stitch length. Always select a higher stitch length at the
upper adjusting wheel (4) than at the lower adjusting wheel (3).
0
1
2
4
3
5
6
7
8
9
10
11
12
0
1
2
4
3
5
6
7
8
9
10
11
12
mm
mm
MAX
MIN
+
+/–
+/–
4
3
2
1
(1) - Keypad key for the stitch length
(2) - Adjusting marks for indicating
the stitch length selected
(3) - Lower adjusting wheel for the
smaller stitch length
(4) - Upper adjusting wheel for the
larger stitch length
Machine damage possible if the adjusting wheels are
turned using brute force.
The machine is designed in such a way that a lower stitch
length cannot be selected at the upper adjusting wheel than at
the lower adjusting wheel.
Do not attempt to use brute force to select a smaller stitch
length at the upper adjusting wheel.
ATTENTION

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
