6.3 Checking the pneumatic system

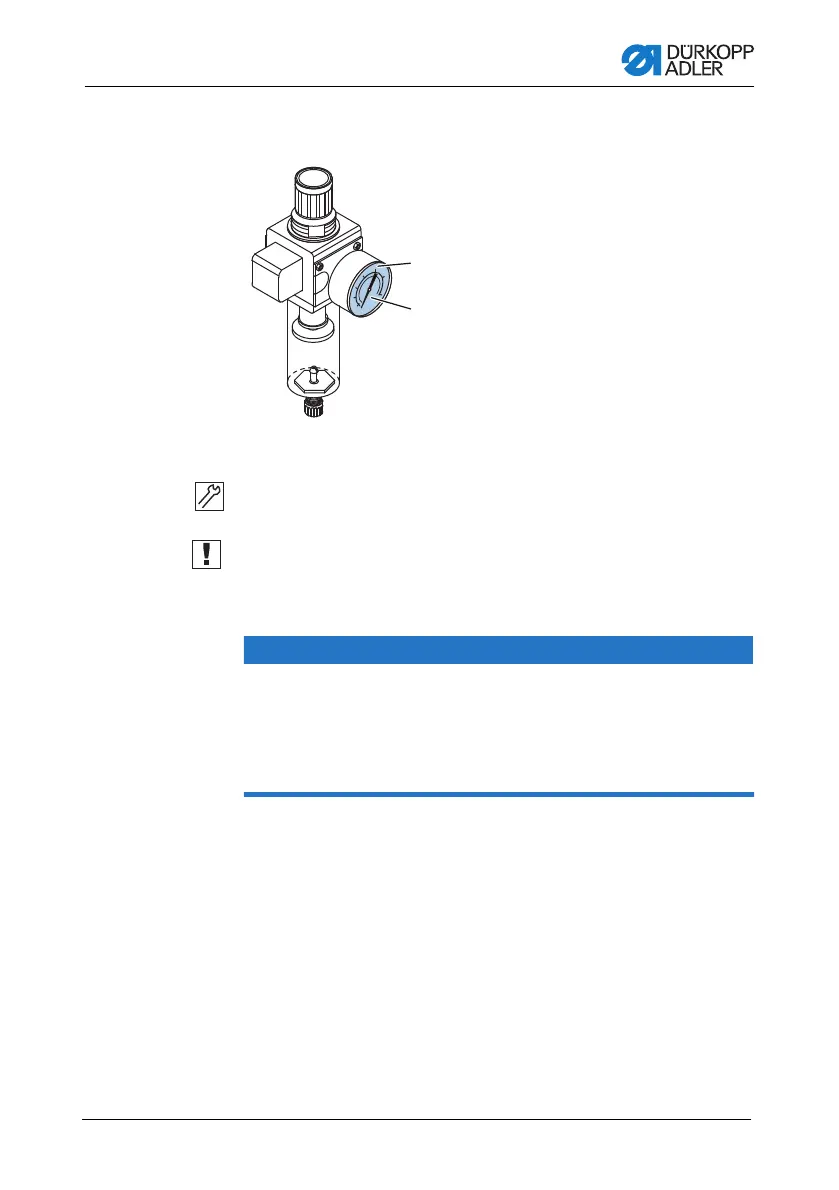

Figure 45: Pressure indicator on the maintenance unit
Check the pressure:
1. Check the pressure at the pressure indicator (2) each day.
Reference value: 6 bar.
Important: The pressure must not deviate from the reference
pressure by more than 1 bar.
0
2
8
4
6
10
1
2
(1) - Reference value: 6 bar
(2) - Pressure indicator
Machine damage possible due to incorrect pressure.
An incorrect pressure can cause damage to the machine.
Check the pressure on a daily basis.
Have the pressure adjusted by qualified specialists if the pres-
sure deviates from the reference value.
ATTENTION

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
