DURKOPP ADLER 867 Operating Manual

Maintenance
66 Operating manual 867 Version 01.0 - 12/2012

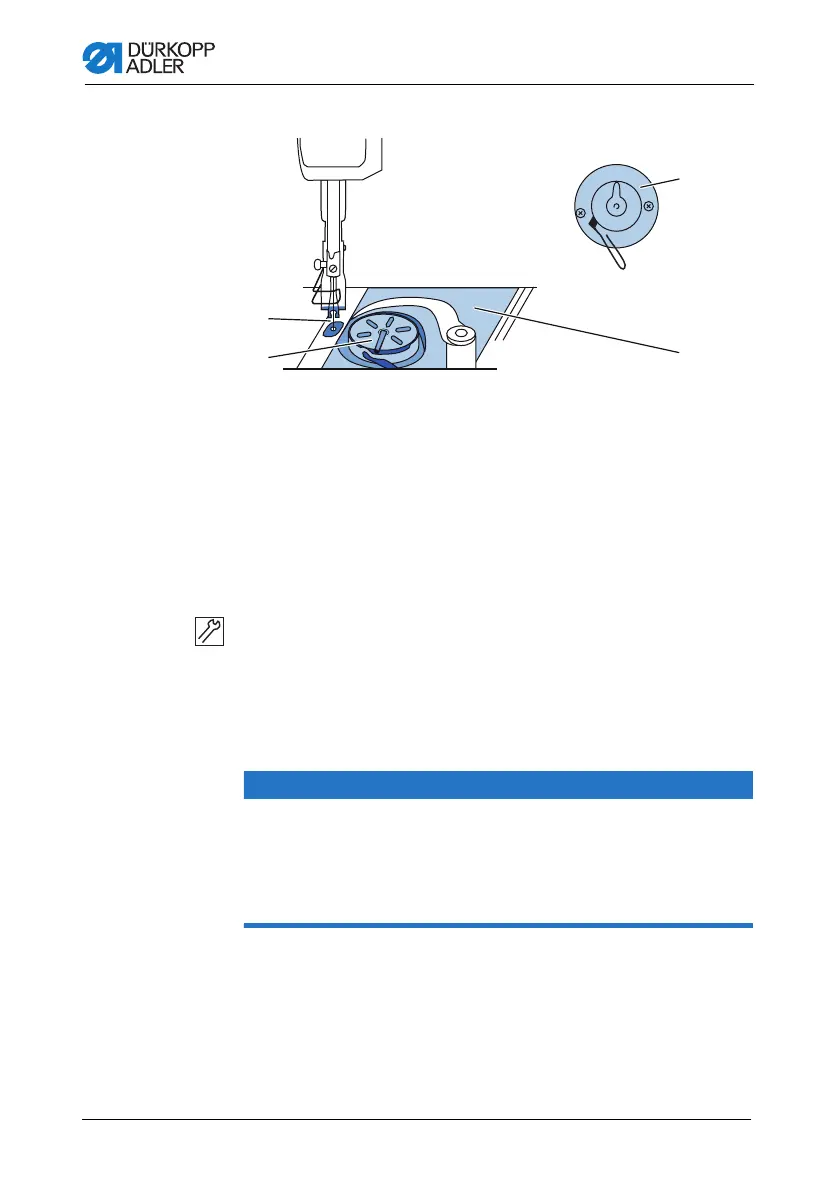

Figure 41: Points that need to be cleaned particularly thoroughly
Areas particularly susceptible to soiling:
• Cutter on the bobbin winder for the hook thread (4)
• Area under the needle plate (3)
• Hook (2)
• Area around the needle (1)
Cleaning steps:
1. Switch off the power supply at the main switch.
2. Remove any sewing dust and thread remains using a com-
pressed-air pistol or a brush.
4
3
2
1
(1) - Area around the needle
(2) - Hook
(3) - Area under the needle plate
(4) - Cutter on the bobbin winder
Possible damage to the paintwork from solvent-based
cleaners.
Solvent-based cleaners damage the paintwork of the
machine.
Use only solvent-free substances for cleaning the machine.
ATTENTION

DURKOPP ADLER 867 Specifications

General

Stitch Type	Lockstitch
Max Stitch Length	12 mm
Needle System	134-35
Needle Thread Tension	Adjustable
Lubrication	Automatic
Type	Industrial Sewing Machine
Max Sewing Speed	3000 stitches per minute
Presser Foot Lift	20 mm
Power Requirements	230V/50Hz
