Machine description
ICC424HF-CN1EN2.pdf2012-11-23

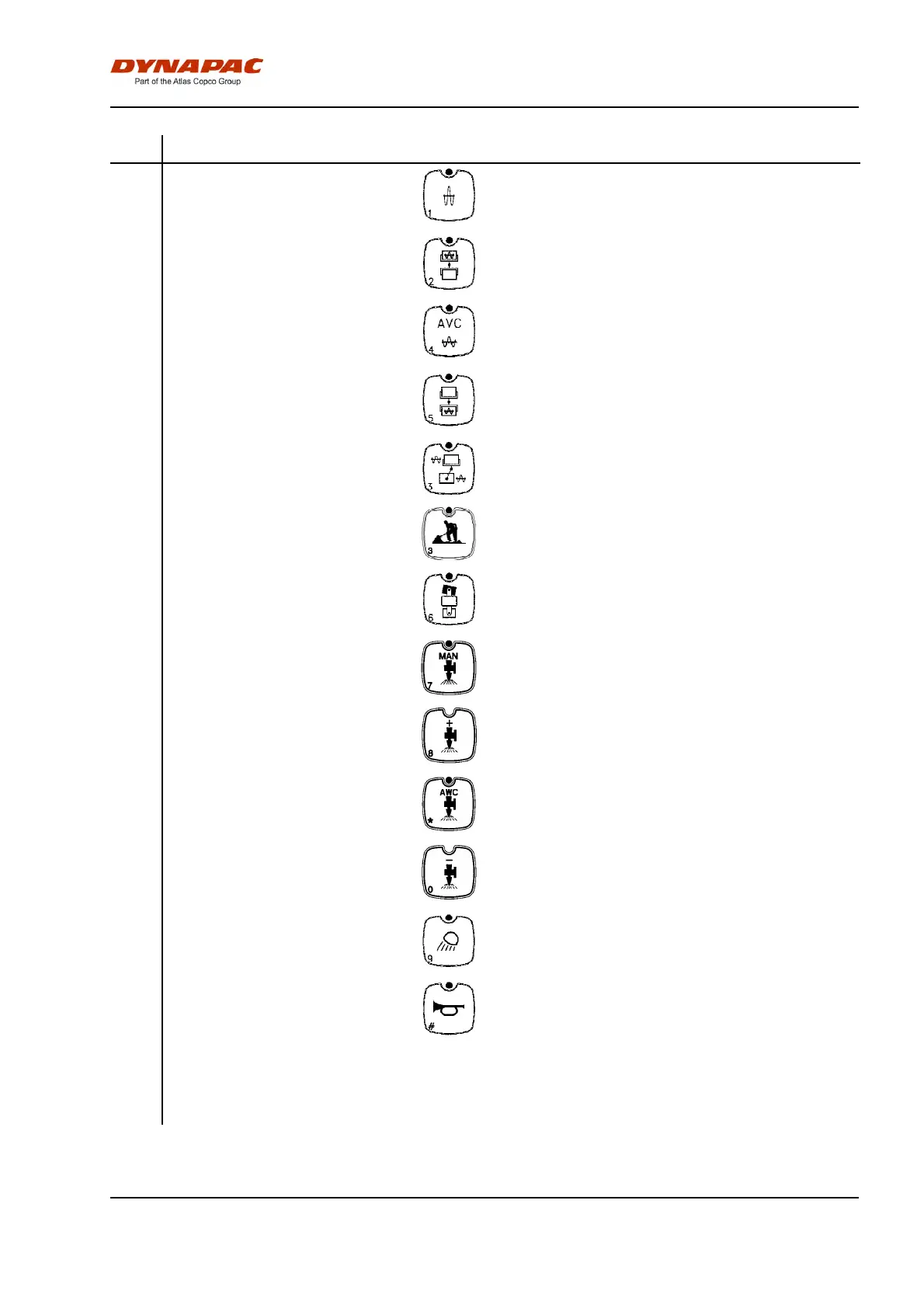

No Designation Symbol FunctionNo Designation Symbol Function
10 Amplitude selector, high
amplitude
Activation gives high amplitude.
(Low amplitude is the basic mode if no button is
activated.)
10 Amplitude selector, high
amplitude
Activation gives high amplitude.
(Low amplitude is the basic mode if no button is
activated.)
11 Vibration, front drum
NEVERactivate the switch when
the switch (4) is activated.
Activation of vibration on front drum.
If not Work mode (14) is activated, there will be no
vibrations on the drums.
11 Vibration, front drum
NEVERactivate the switch when
the switch (4) is activated.
Activation of vibration on front drum.
If not Work mode (14) is activated, there will be no
vibrations on the drums.
12 Automatic vibration control (AVC) By activating the vibrations will be switched ON and
OFF automatically when the F/R lever is moved from
neutral and the roller reaches a preset speed.
12 Automatic vibration control (AVC) By activating the vibrations will be switched ON and
OFF automatically when the F/R lever is moved from
neutral and the roller reaches a preset speed.
13 Vibration rear drum
NEVERactivate the switch when
the switch (4) is activated.
Activation of vibration on rear drum.
If not Work mode (14) is activated, there will be no
vibrations on the drums.
13 Vibration rear drum
NEVERactivate the switch when
the switch (4) is activated.
Activation of vibration on rear drum.
If not Work mode (14) is activated, there will be no
vibrations on the drums.
14 Work mode (Off-set and vibration
permitted plus soft starting and
stopping enabled)
Activation makes it possible to use vibration and
offset (optional), and soft start and stop is activated
The roller is always starting in transportation mode.
14 Work mode (Off-set and vibration
permitted plus soft starting and
stopping enabled)
Activation makes it possible to use vibration and
offset (optional), and soft start and stop is activated
The roller is always starting in transportation mode.
(15) Front drum steering only (CG) Valid for pivot machines only (CG). By activating
steering on front drum only.
(15) Front drum steering only (CG) Valid for pivot machines only (CG). By activating
steering on front drum only.
16 Manual sprinkler Continuous sprinkling on both drums.16 Manual sprinkler Continuous sprinkling on both drums.
17 Increasing sprinkling (timer) Each push on the button gives higher sprinkling water
volume on drums.
17 Increasing sprinkling (timer) Each push on the button gives higher sprinkling water
volume on drums.
18 Automatic sprinkling By activating the sprinkling water will engage and
disengage automatically when the F/R lever is moved
from neutral.
18 Automatic sprinkling By activating the sprinkling water will engage and
disengage automatically when the F/R lever is moved
from neutral.
19 Decreasing sprinkling (timer) Each push on the button gives lower sprinkling water
volume on drums.
19 Decreasing sprinkling (timer) Each push on the button gives lower sprinkling water
volume on drums.
20 Working lights By activating the working lights will turn ON.20 Working lights By activating the working lights will turn ON.
21 Horn Press to sound the horn.21 Horn Press to sound the horn.
22 Emergency stop Brake the roller and switch off the engine. The power
supply goes off.
When starting the machine the emergency stop
must be inactive, but the parking brake must be
applied.
22 Emergency stop Brake the roller and switch off the engine. The power
supply goes off.
When starting the machine the emergency stop
must be inactive, but the parking brake must be
applied.
27
