Dynapac CC424HF - Page 38

Machine description
ICC424HF-CN1EN2.pdf 2012-11-23

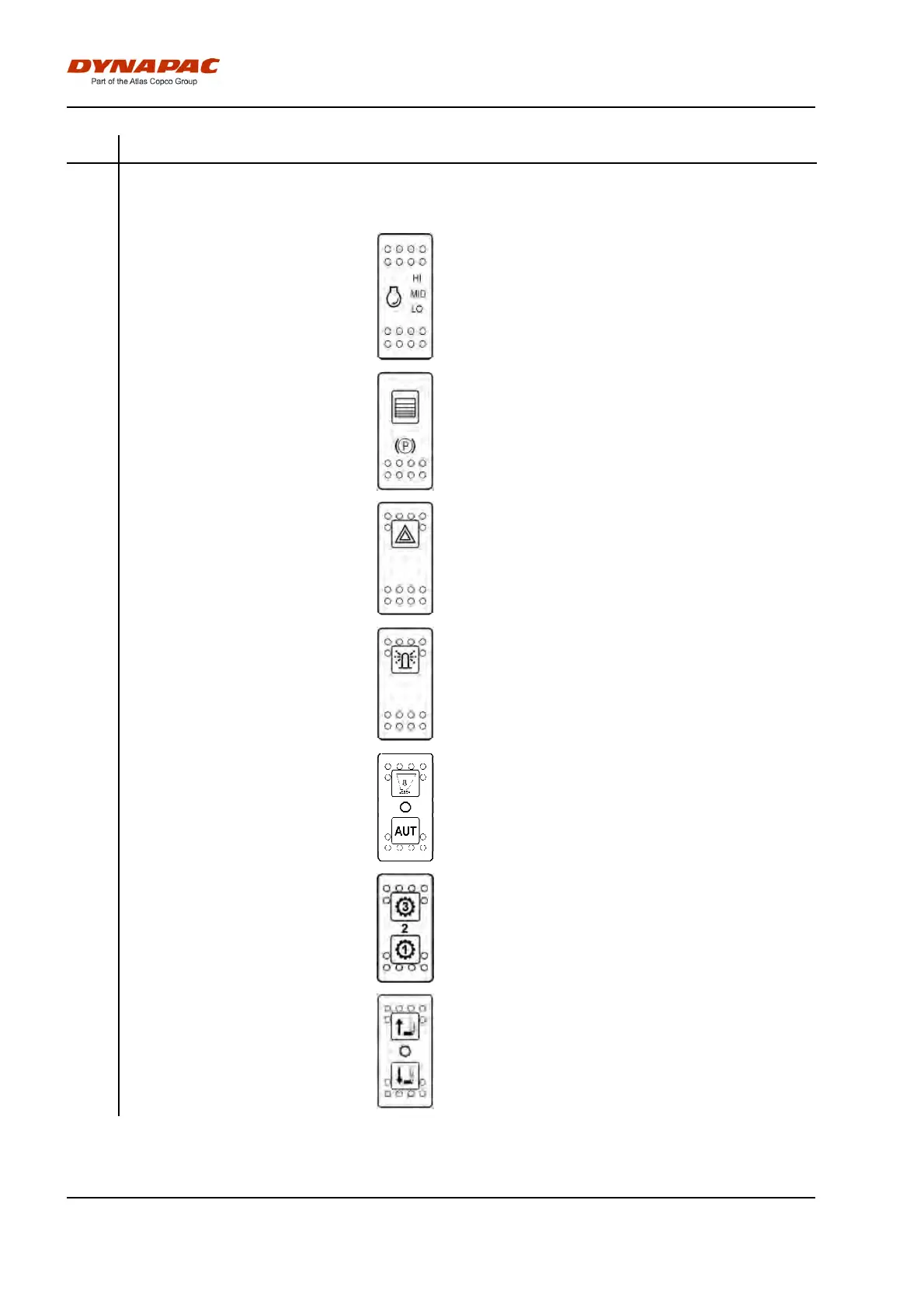

No Designation Symbol FunctionNo Designation Symbol Function
23 Speed limiter Limitation of the machine's max. speed (max.speed is
obtained with full deflection of the F/R lever). Set the
knob to the required position and read the speed on
the display (30).
23 Speed limiter Limitation of the machine's max. speed (max.speed is
obtained with full deflection of the F/R lever). Set the
knob to the required position and read the speed on
the display (30).
24 Rpm switch, diesel engine Three-position switch for idling, intermediate speed
and working speed.
The control must be in the idling position to start
the machine. The diesel engine drops to even lower
revs during idling, more than approx. 10 seconds if
the F&R lever is in neutral.
If the F&R lever is moved out of neutral the speed will
increase to the set speed again.
24 Rpm switch, diesel engine Three-position switch for idling, intermediate speed
and working speed.
The control must be in the idling position to start
the machine. The diesel engine drops to even lower
revs during idling, more than approx. 10 seconds if
the F&R lever is in neutral.
If the F&R lever is moved out of neutral the speed will
increase to the set speed again.
25 Parking brake When pressed the parking brake is activated.
To release the brakes, slide the red part backwards
(towards you) and change the position of the lever.
The parking brake must be activated to start the
machine!
25 Parking brake When pressed the parking brake is activated.
To release the brakes, slide the red part backwards
(towards you) and change the position of the lever.
The parking brake must be activated to start the
machine!
26 Hazard warning lights Activate the hazard warning light by depressing the
button.
26 Hazard warning lights Activate the hazard warning light by depressing the
button.
27 Rotating beacon Activate the rotating beacon by depressing the button.27 Rotating beacon Activate the rotating beacon by depressing the button.
28 Gravel spreader Activating the gravel spreader. Manual/Automatic
spreading. (CC224-324)
28 Gravel spreader Activating the gravel spreader. Manual/Automatic
spreading. (CC224-324)
29 Gear position switch Position 1: Used for maximum gradeability when
compacting with vibration
Position 2: Normal position
Position 3: Used for maximum transport speed or
static compaction at high speed without vibration.
29 Gear position switch Position 1: Used for maximum gradeability when
compacting with vibration
Position 2: Normal position
Position 3: Used for maximum transport speed or
static compaction at high speed without vibration.
30 Edge press/cutter, UP/DOWN The edge cutter can be moved up and down when the
machine is in the operating position. The edge cutter
can only be moved up when the machine is in
transport position.
Pressing on the lower edge moves the edge cutter
down.
Pressing on the upper edge moves the edge cutter up.
30 Edge press/cutter, UP/DOWN The edge cutter can be moved up and down when the
machine is in the operating position. The edge cutter
can only be moved up when the machine is in
transport position.
Pressing on the lower edge moves the edge cutter
down.
Pressing on the upper edge moves the edge cutter up.
28
