CHAPTER 3
High Pressure Blowers
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3-22
HIGH PRESSURE BLOWERS
Use the following instructions to install the high pressure blowers. Be sure to replace
your lower blower arm assemblies with the ones included in your iX upgrade kit.

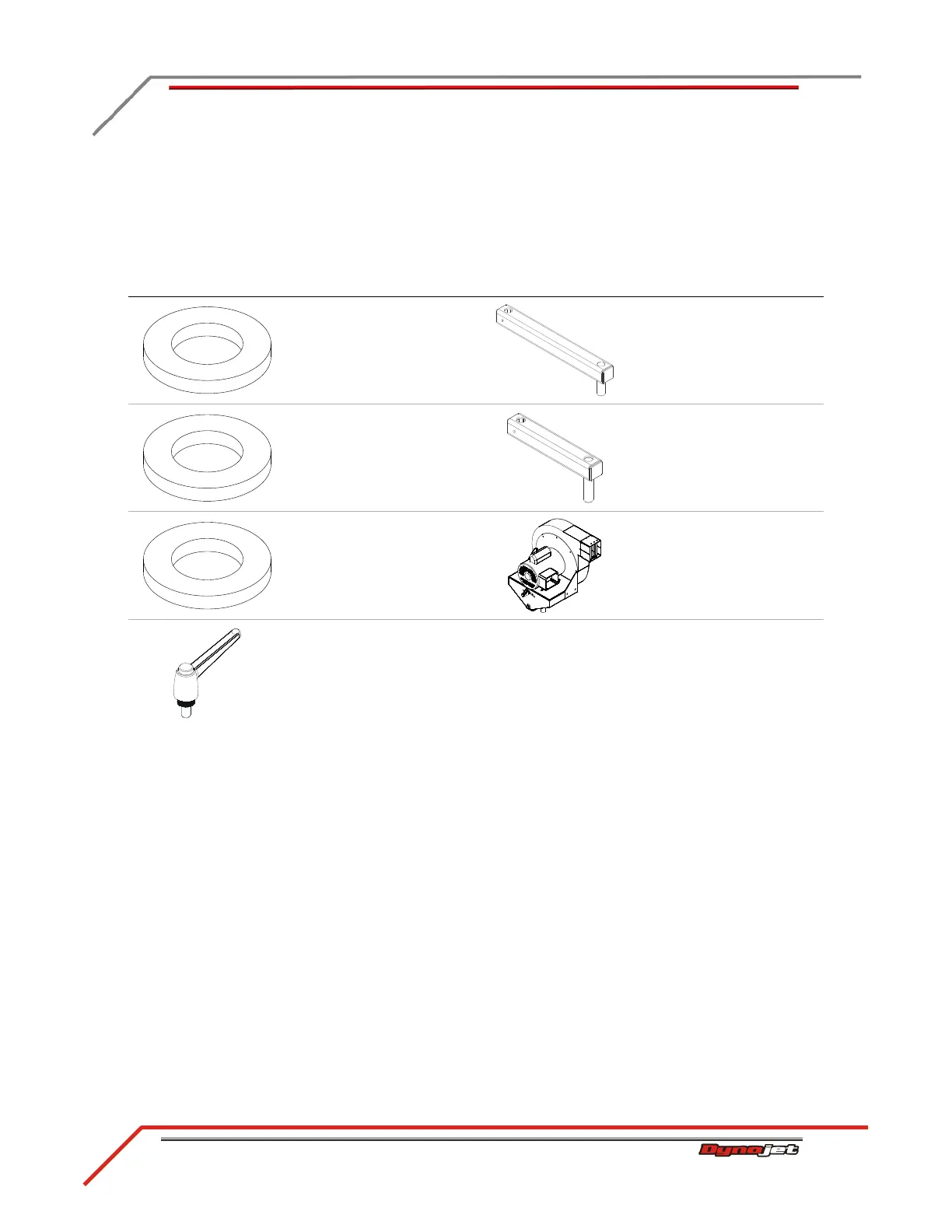

You will need the following parts:
1 Place a 1/4-inch thick poly washer around the pin on the fan arm mount with the
monitor arm.
2 Place two 1/4-inch thick poly washers around the pin on the fan arm mount
without the monitor arm.
3 Place the lower blower arm over the fan arm mount pin.
Note: Be sure to use the lower blower arms (P/N 63400002) included in the
iX or iXW upgrade kit.
4 Place an aluminum washer between the clamp lever and the lower bower arm.
5 Secure the lower blower arm to the fan arm mount pin using the clamp lever.
6 Place a 1/8-inch thick poly washer around the pin on the upper blower arm.
7 Insert the pin on the upper blower arm into the lower blower arm.
8 Place a 1/8-inch thick poly washer around the pin on the blower.
9 Insert the pin on the blower into the upper blower arm.
10 Plug the power cord from the blower into the power source located on the dyno
chassis.
part description part description
washer 1.5 x .38 ID x .187
thick, aluminum (2)
P/N 26215220
upper pivot arm assembly
P/N 63400000
washer 1.87 x 1.25 ID x .12
thick. poly (4)
P/N 26215520
lower blower arm assembly
P/N 63400001
*iX and iXW installs replace
with P/N 63400002
washer 1.87 x 1.25 ID x .25
thick, poly (4)
P/N 26215521
blower assembly (2)
clamp lever, 3/8-16 x 3/4"
(8)
P/N 35712991
To Next Page
