Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-56
GROUND HOOKS
Use the following instructions to place and install the ground hooks. You may wish to
change the location of the ground hooks when using a ramp with the dyno; place the
ground hooks in a location that works best for your dyno application.
You will need the following parts:
• 10111 Ground Hook/D-Ring (2)
• 36932100 Washer, 3/8", Splitlock, Steel (4)
• 37513200 Anchor, Redhead, 3/8" (4)
• DM150-002-007 Washer, 5/16", Flat (4)
• DM150-019-012 Bolt, 3/8-16 x 1", Hex (4)
1 Mark the ground hook placement as shown in Figure 2-49. Two additional ground
hooks are included for installation in front of the dyno; placement will vary
depending on dyno application.
2 Using the ground hook as a template, mark and drill each hole needed to secure
the ground hooks to the floor.
3 Install the Red Head anchors. Refer to Appendix A for installation instructions.
4 Secure each ground hook to the floor using two 3/8-16 x 1-inch hex bolts, two
5/16-inch flat washers, and two 3/8-inch lock washers.

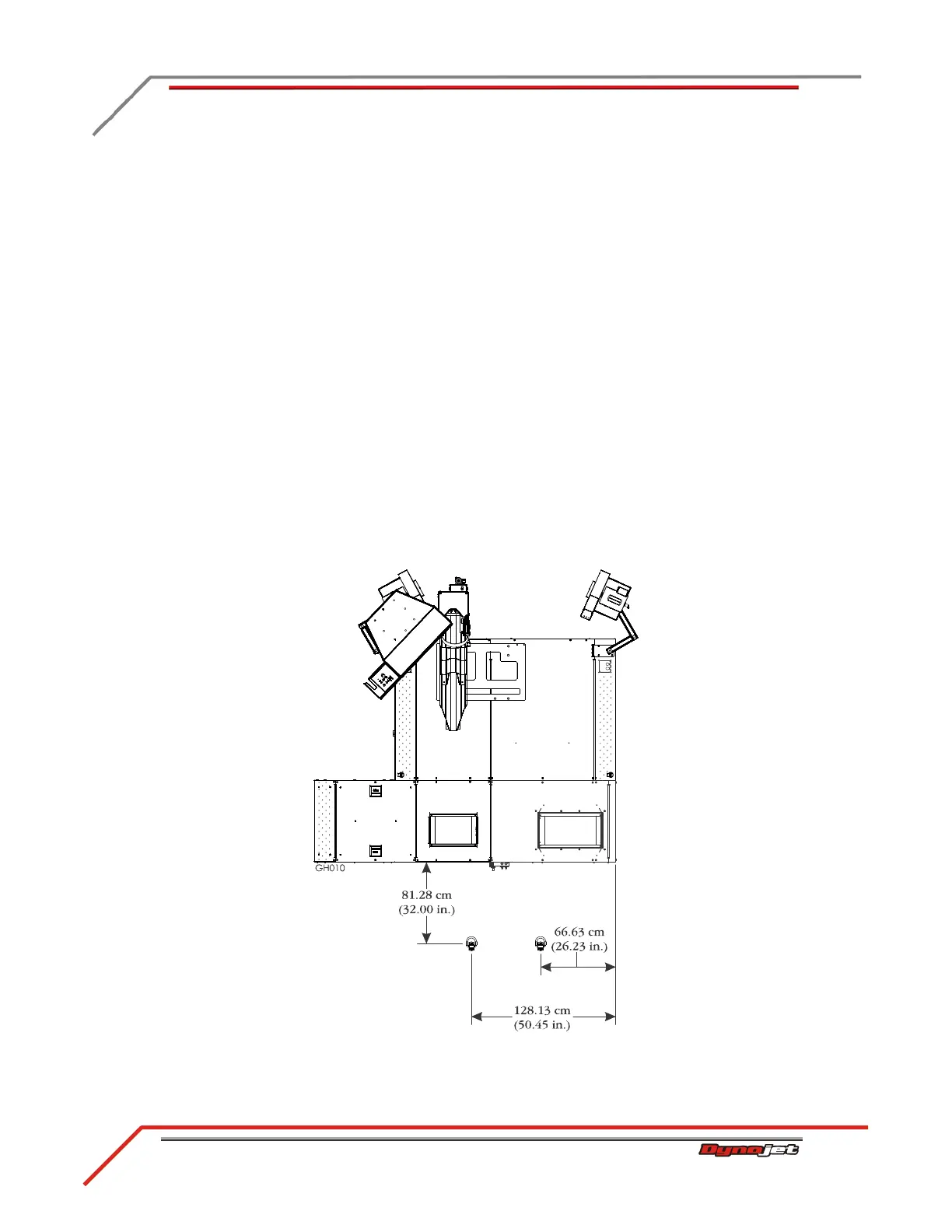

Figure 2-49: Ground Hook Placement
