Dynojet 200iX User Manual

2-25
INSTALLATION
iX Drum Module Installation
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
IX DRUM MODULE INSTALLATION
When you receive your iX upgrade kit, examine the exterior of the shipping container
for any visible damage. If damage is detected at this stage, contact the shipper or
Dynojet before proceeding with unpacking.
Use the following steps to unload the iX drum module and related items. You will need
to provide equipment capable of lifting a minimum of 363 kg. (800 lb.) to move the
crated drum into position in your dyno room.
Note: If this is an iXW upgrade, refer to Appendix E.
REMOVING THE ITEMS FROM CRATE
1 Move the crate to a clear area near your dyno room.
2 Using a pry bar, or a large flat screwdriver, and a hammer, carefully remove the
top and sides of the crate.

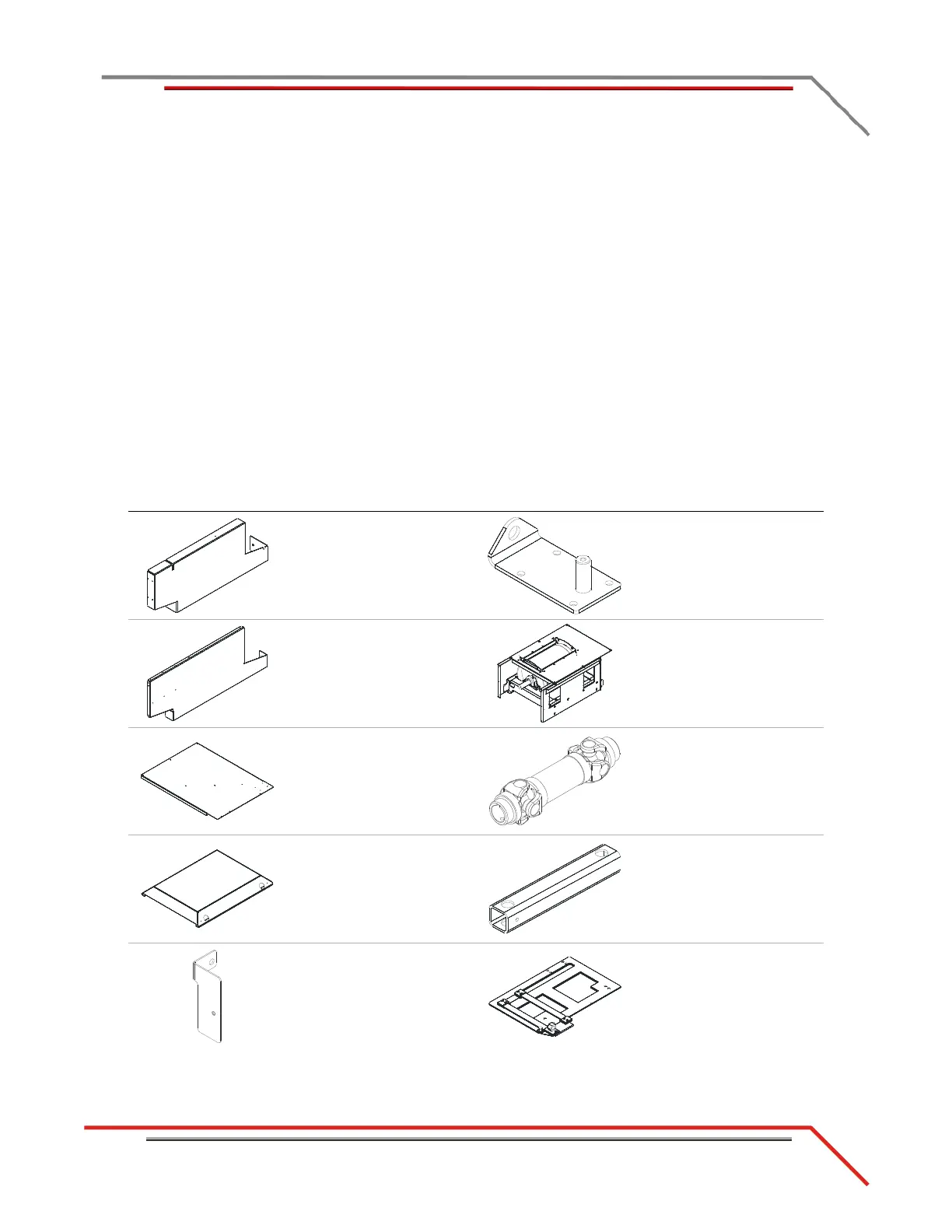

3 Remove the following parts from the crate and set aside.
part description part description
middle bulkhead
P/N 21200022
fan arm mount (2)
P/N 61300009P
see page 2-44
front bulkhead
P/N 21200024
drum module
P/N 62100000
center panel
P/N 21200037
see page 2-42
driveline assembly
P/N 62200004
drum safety cover
P/N 21200038
see page 2-42
lower blower arm (2)
P/N 63400002
see page 3-22
toe kick bracket
P/N 21600012
trike carriage adapter
assembly
P/N 71300002
see page 2-45
