Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-32
CABLE ROUTING
Use the following instructions to identify and route the cables. You will need to route
the cables before installing the covers. For the following instructions, the support arm
and control panel will be mounted on the left side of the dyno.
IDENTIFYING THE CABLES

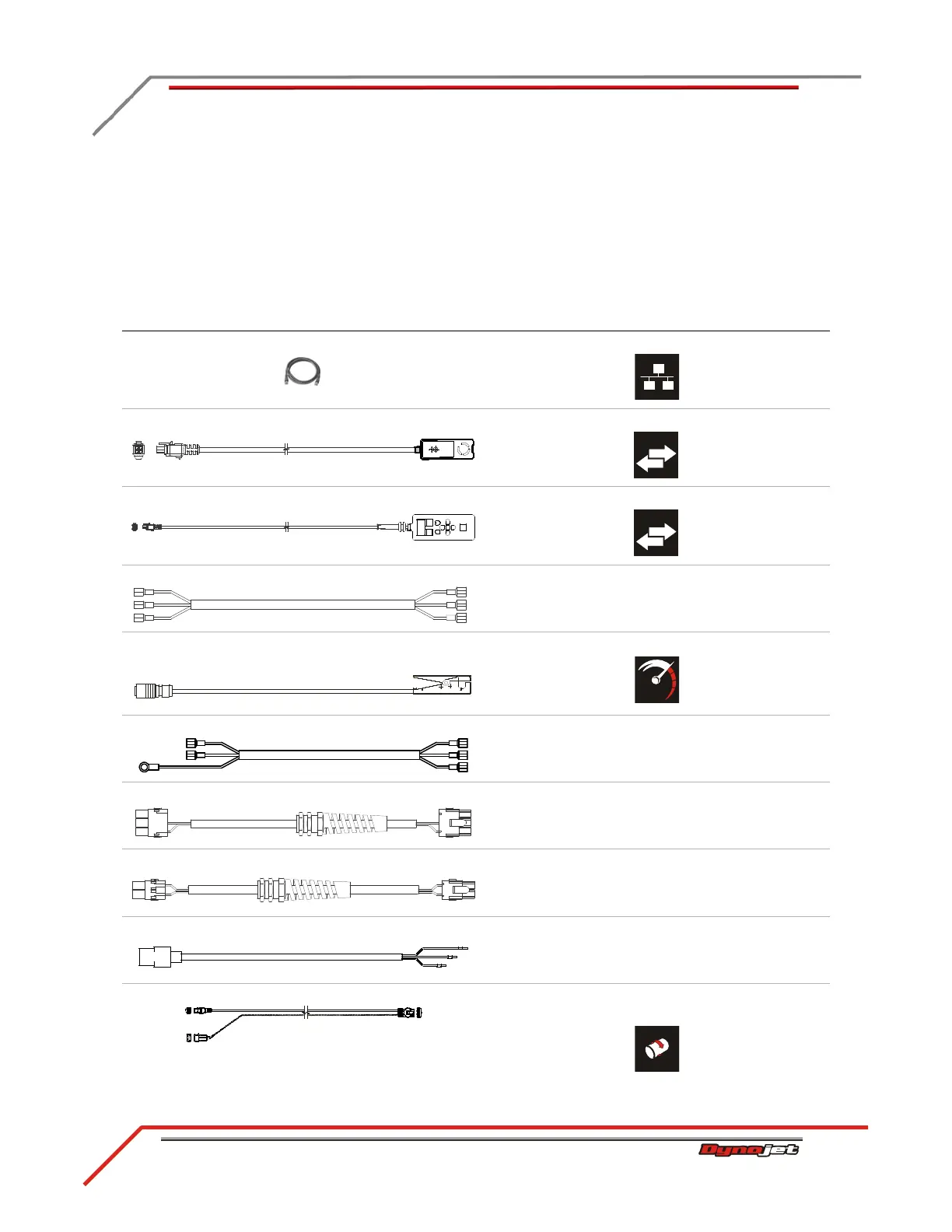

cable brief routing description
A - 42900000 network cable connects the DynoWare RT to your local network
B - 66400011 remote atmos cable assembly connects to the DynoWare RT
C - 76100007 CAN pendant cable assembly connects to the DynoWare RT
D - 76950053 blower power extension cable connects the right blower cable from the CPI to the
AC blower socket on the dyno chassis, see page 2-30
E - 76950201 primary RPM pick up cable
- 76950203 secondary pick up cable
connects to the DynoWare RT
F - 76950304 CPI to right blower cable connects the CPI to the AC blower socket on the right
side of the dyno chassis using the blower power
extension cable
G - 76950307 wheel clamp cable assembly connects the wheel clamp to P5 on the front of the
CPI panel, see page 2-38
*optional accessory
H - 76950308 power carriage cable assembly connects the power carriage to P8 on the front of the
CPI panel, see page 2-38
*optional accessory
I - 76950310 DynoWare RT power cable connects the CPI to the DynoWare RT
J - 76950548 speed pick up/brake cable connects the brake solenoid and speed pick up to
DRUM 1 on the back of the DynoWare RT
