APPENDIX E
Ground Hook Installation—Above Ground iXW Dyno
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
E-18
GROUND HOOK INSTALLATION—ABOVE GROUND IXW DYNO
Using Figure E-12 as a guide, place the ground hooks in a location that works best for
your dyno application. Ground hook placement will vary depending on dyno
application.
You will need the following parts:
• 10111 Ground Hook/D-Ring (4)
• 36932100 Washer, 3/8", Splitlock, Steel (8)
• 37513200 Anchor, Redhead, 3/8" (8)
• DM150-002-007 Washer, 5/16", Flat (8)
• DM150-019-012 Bolt, 3/8-16 x 1", Hex (8)
1 Using the ground hook as a template, mark and drill each hole needed to secure
the ground hooks to the floor.
2 Install the Red Head anchors. Refer to Appendix A for installation instructions.
3 Secure each ground hook to the floor using two 3/8-16 x 1-inch hex bolts, two
5/16-inch flat washers, and two 3/8-inch lock washers.

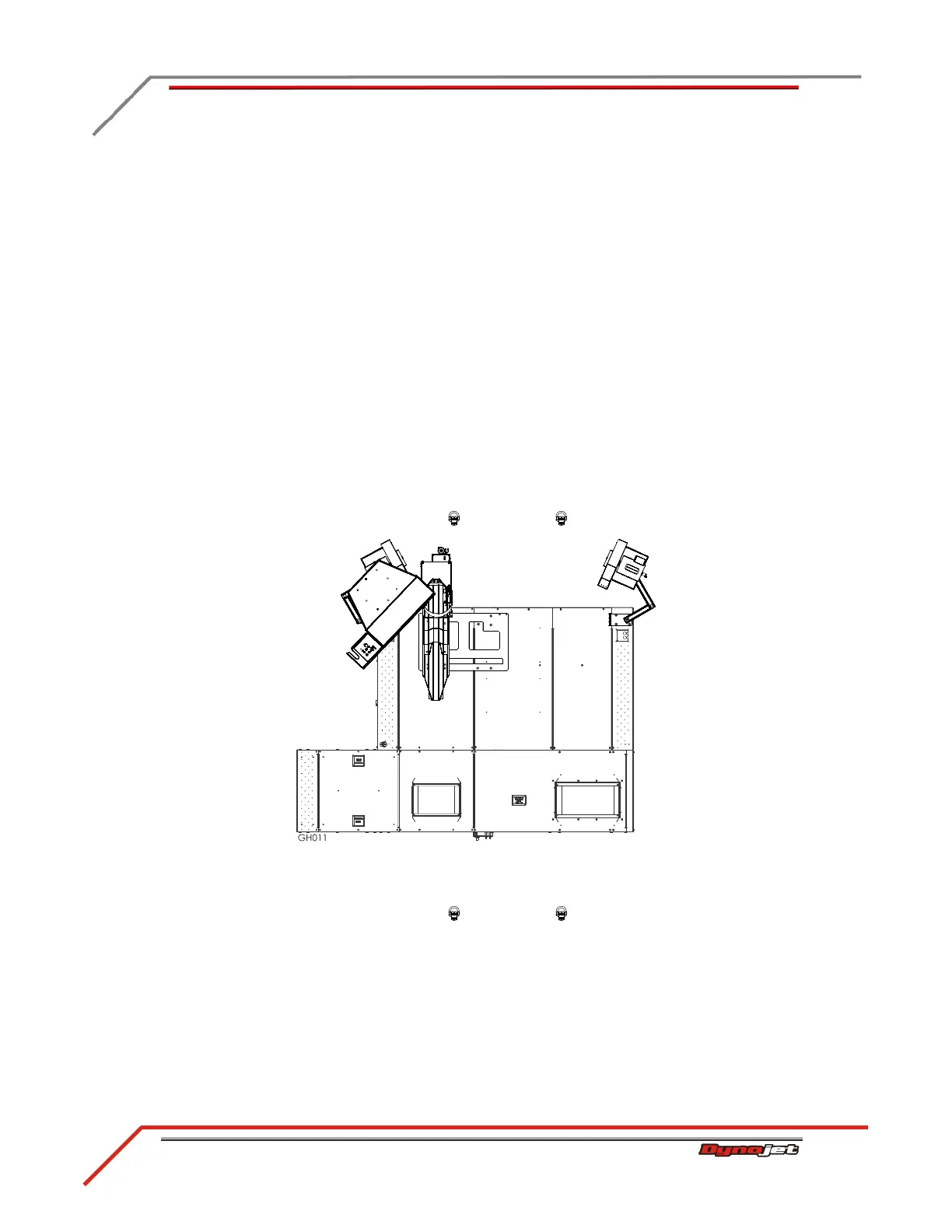

Figure E-12: Ground Hook Placement—iXW Dyno
