4-11
CONTROL PANEL INTERFACE OPERATION
Maintenance and Troubleshooting
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
REPLACING THE EDDY CURRENT BRAKE DRIVER FUSES
Hazardous voltage. To avoid risk of electrical shock, disconnect the
battery and unplug the dyno.
1 Open the Control Panel Interface (CPI) door.
2 Gently push the fuse holder slightly inward and rotate counterclockwise. Remove
the fuse holder.
3 Replace the fuse with a fuse type listed below.
For continued protection against risk of fire, replace only with a fuse of
the same type and having the same electrical rating.
• 20A, Bussman BAF-20
• Fast Blow, Dynojet P/N 54200014

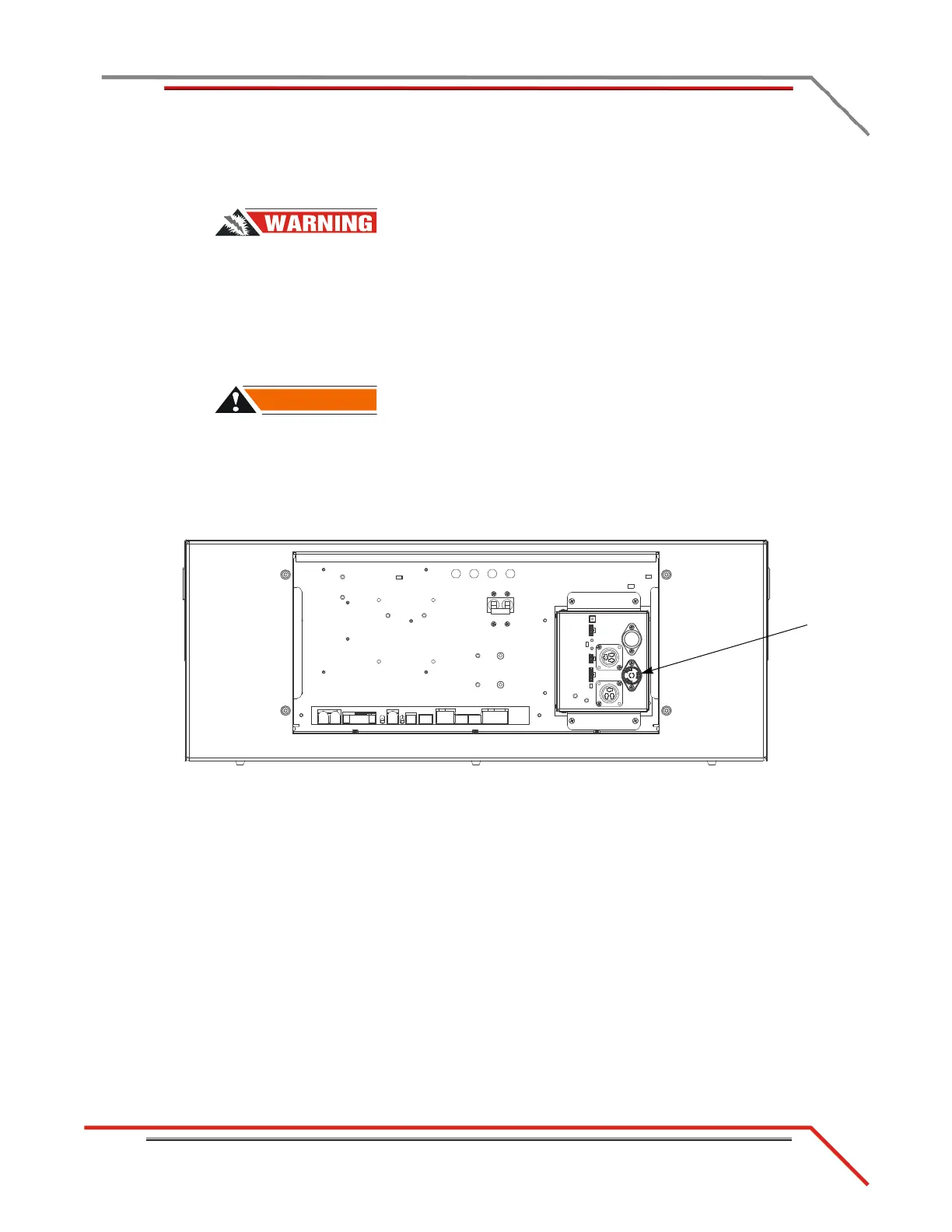

Figure 4-3: Eddy Current Brake Driver Fuse
