CHAPTER 2
Eddy Current Brake
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-22
INSTALLING THE LOAD CELL
The load cell is an optional accessory. If you did not order a load cell, skip this section.
You will need the following part:
• 76950753 Load Cell Assembly
1Verify the main dyno power is disconnected.
2 Remove the two bolts and nuts securing the existing bar on the eddy current brake
and remove the bar. Set the bolts and nuts aside.
3 Verify the eyelets on the load cell are spaced the same as the bar removed earlier.
Adjust the load cell spacing by loosening the lock nut and turning the eyelet.

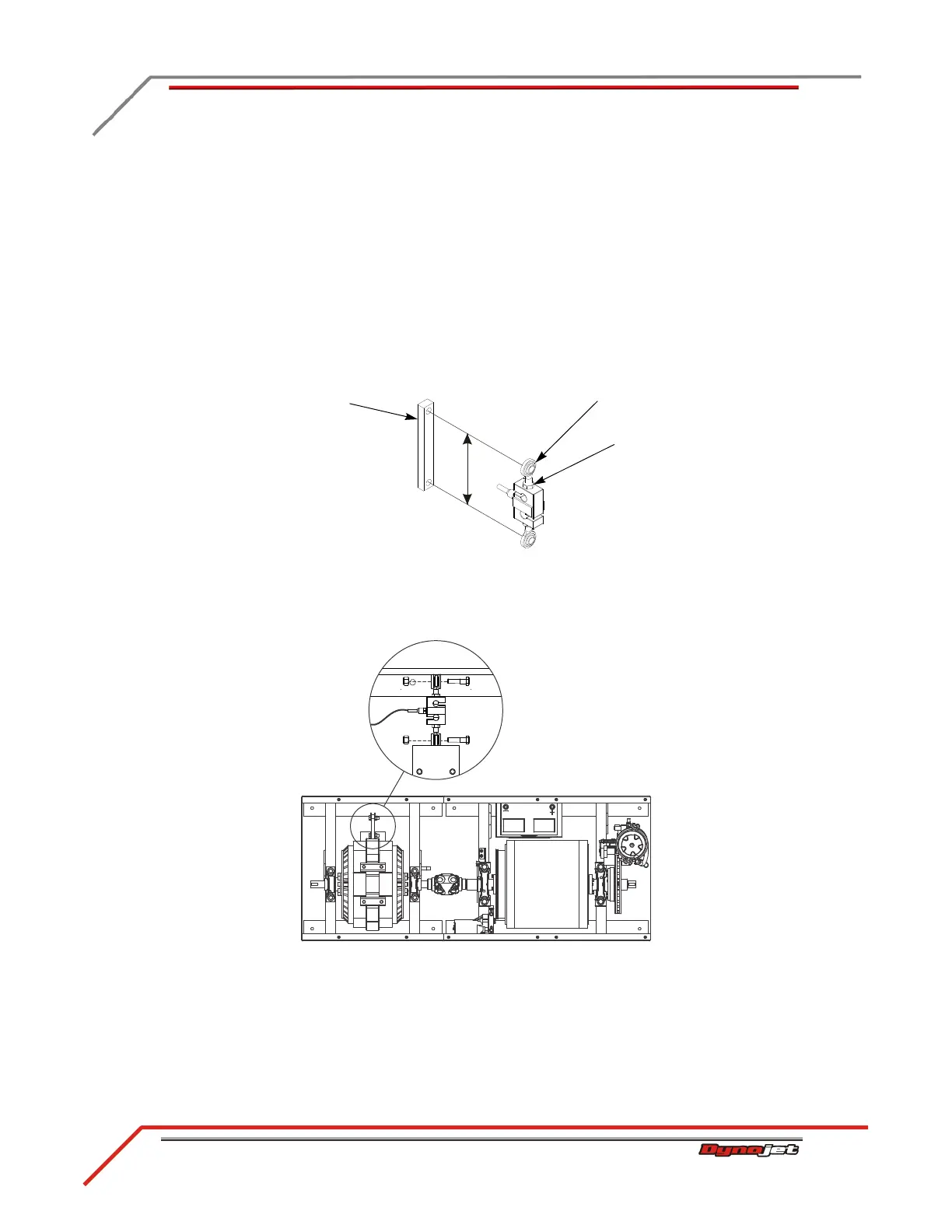

Figure 2-18: Verify Load Cell Spacing
4 Secure the load cell to the mounting bracket using the two bolts and nuts removed
earlier.
Figure 2-19: Install the Load Cell
distance must be
the same
eyelet
bar
lock nut
install the load cell
(the brake is not
shown for clarity)
