CHAPTER 5
Loading the Vehicle
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
5-2
LOADING THE VEHICLE
Use the following steps to load a vehicle on the dyno. For detailed information on
loading a motorcycle on the dyno, refer to your motorcycle dyno installation guide.
Risk of injury. Always wear proper eye and ear protection when operating
the dyno.
1 Verify your computer is running. Set the dyno brake on by pressing the red button
on the hand held pendant.
2 Turn the carriage screw handle (or use the control panel to run the power
carriage) until the carriage is all the way out.
3 Drive the vehicle onto the dyno and align the vehicle straight with the dyno.
4 Stop the vehicle when the drive axle is centered on the drum.

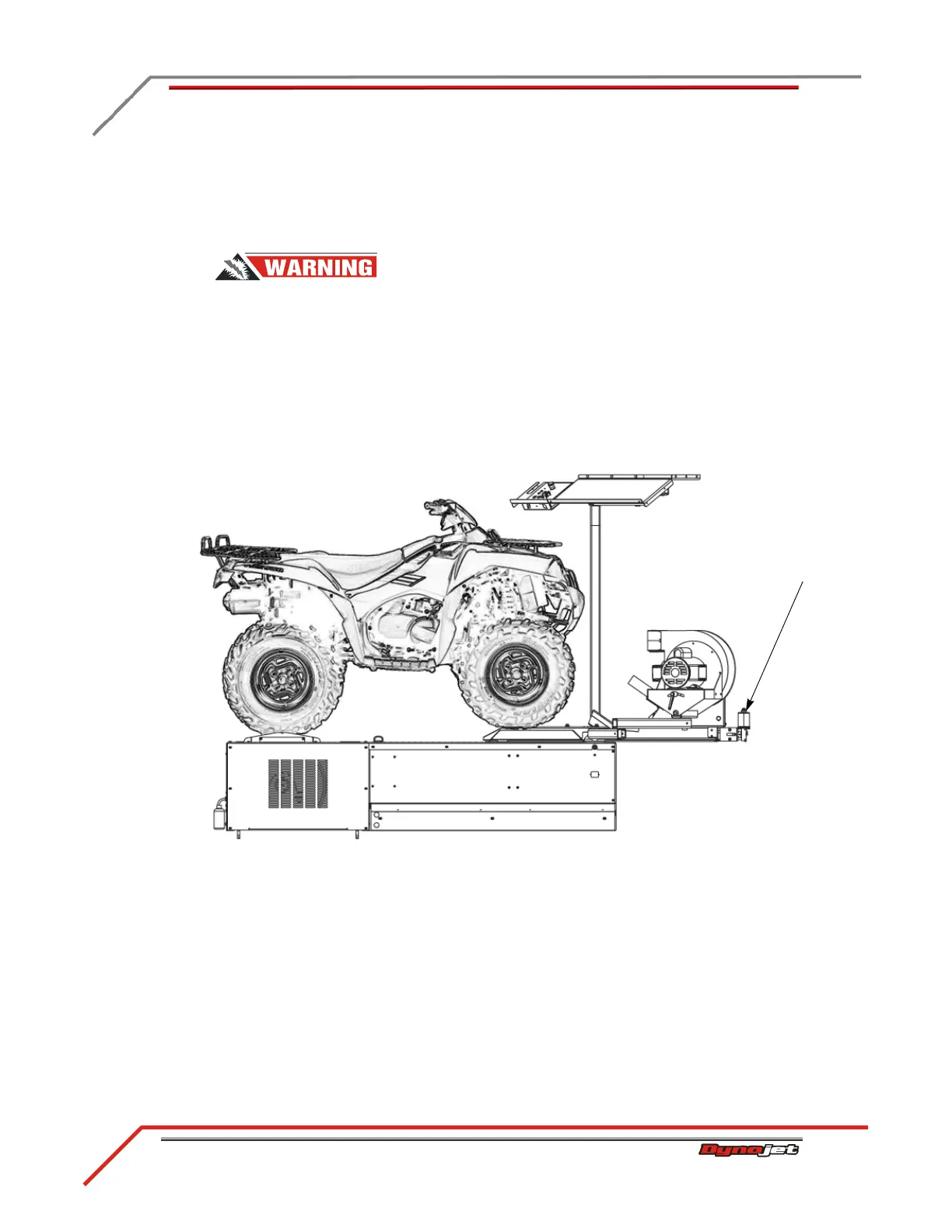

Figure 5-1: Load the Vehicle
adjust carriage all
the way out
center drive axle
on dyno drum
To Next Page
