Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
RAMP BRACKET
The ramp bracket allows you to attach your own ramp to the dyno. You will need to
modify your ramp to secure it to the ramp bracket.
If you purchased the folding ramp option, refer to Appendix D.
You will need the following part:
• 21629203 Ramp Bracket
1 With the ramp upside down, center the ramp bracket under the lip at the top of
the ramp.
2 Using the larger holes on the bracket, mark and drill two 3/8-inch holes in the
ramp.

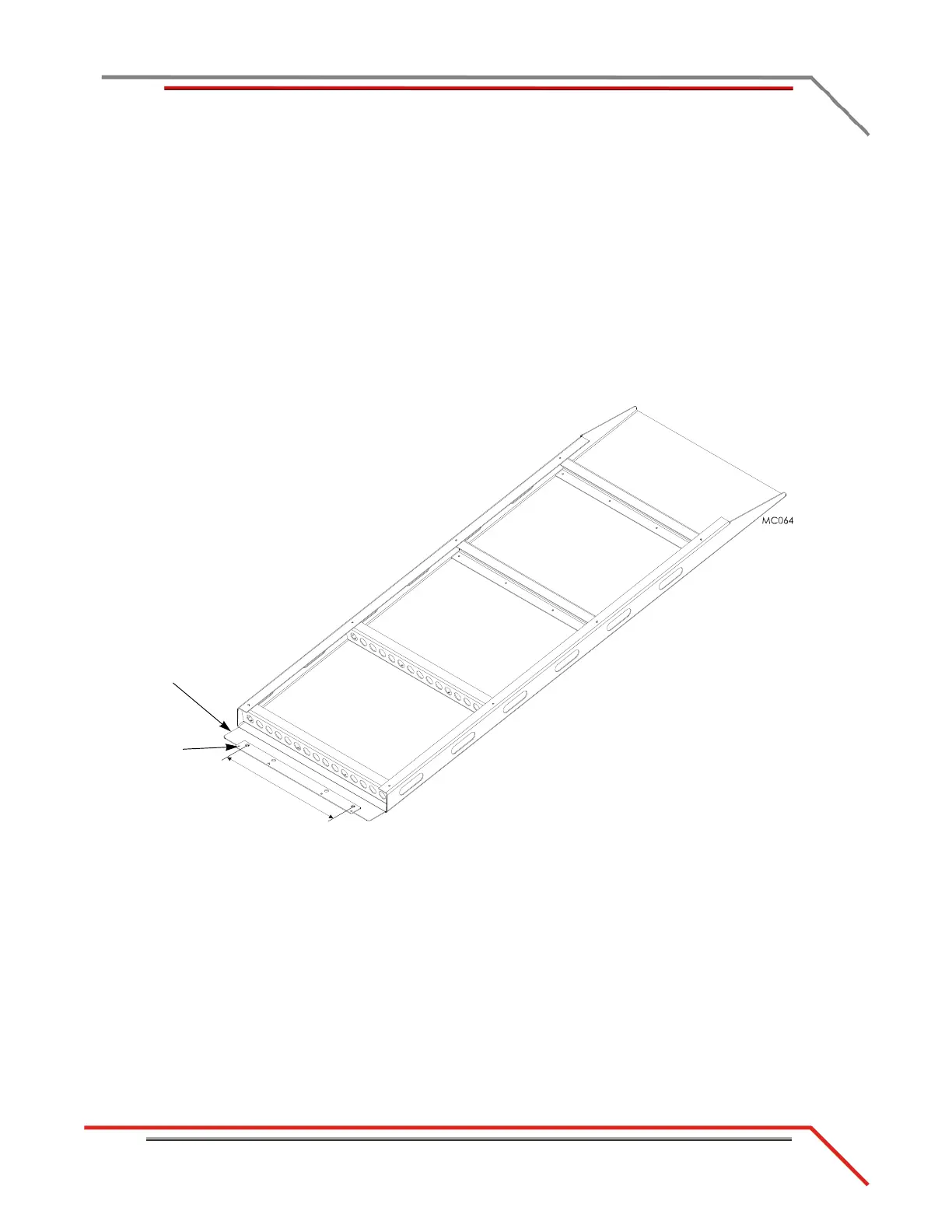

Figure 2-50: Mark and Drill Ramp Bracket Holes
ramp lip
ramp bracket
24 inches
