Dynojet 200iX User Manual

CHAPTER 2
Ramp Bracket
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-58
3 Insert the 3/8-inch bolts from the top of the ramp and secure using 3/8-inch
washers and nuts.

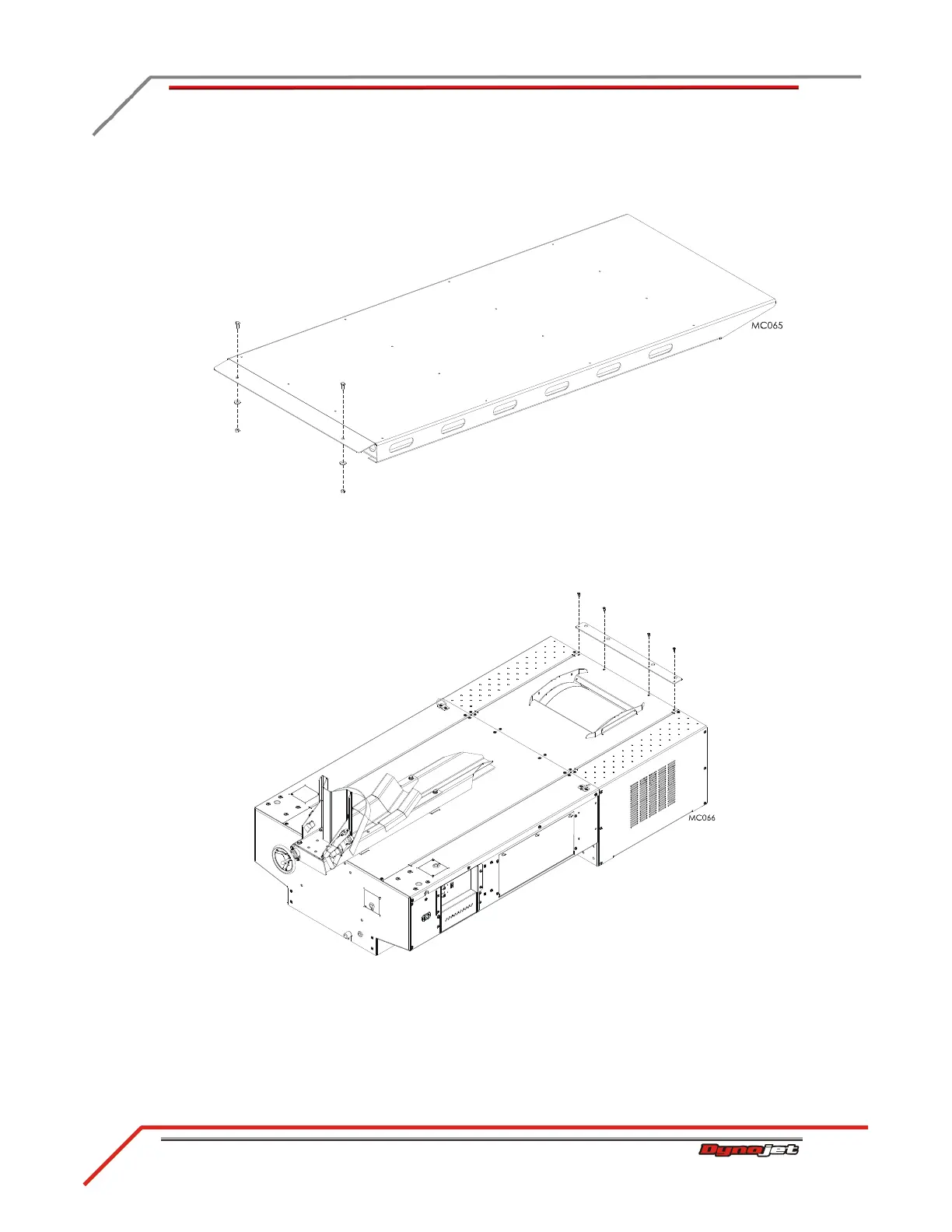

Figure 2-51: Secure the Bolts to the Ramp
4 Remove the four 1/4-inch bolts from the rear of the drum cover.
5 Secure the ramp bracket to the rear drum cover using the bolts you just removed.
Figure 2-52: Secure the Bracket to the Drum Cover
