INSTALLATION
Eddy Current Brake
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
EDDY CURRENT BRAKE
The eddy current brake is an optional accessory. This section will walk you through
removing the eddy current brake from the crate, and attaching the brake to your dyno.
If you did not purchase the eddy current brake, skip this section and continue with the
installation.
You will need to provide equipment capable of lifting the eddy current brake off the
crate and into position in your dyno room. You will also need a pair of straps. Dynojet
recommends using continuous nylon loop style straps.
For more information on routing the eddy current b rake cables, refer to “Cable
Routing” on page 2-32.
To prevent possible injury, verify all power cords are unplugged.
UNPACKING THE EDDY CURRENT BRAKE
1 Remove the top and sides of the crate.

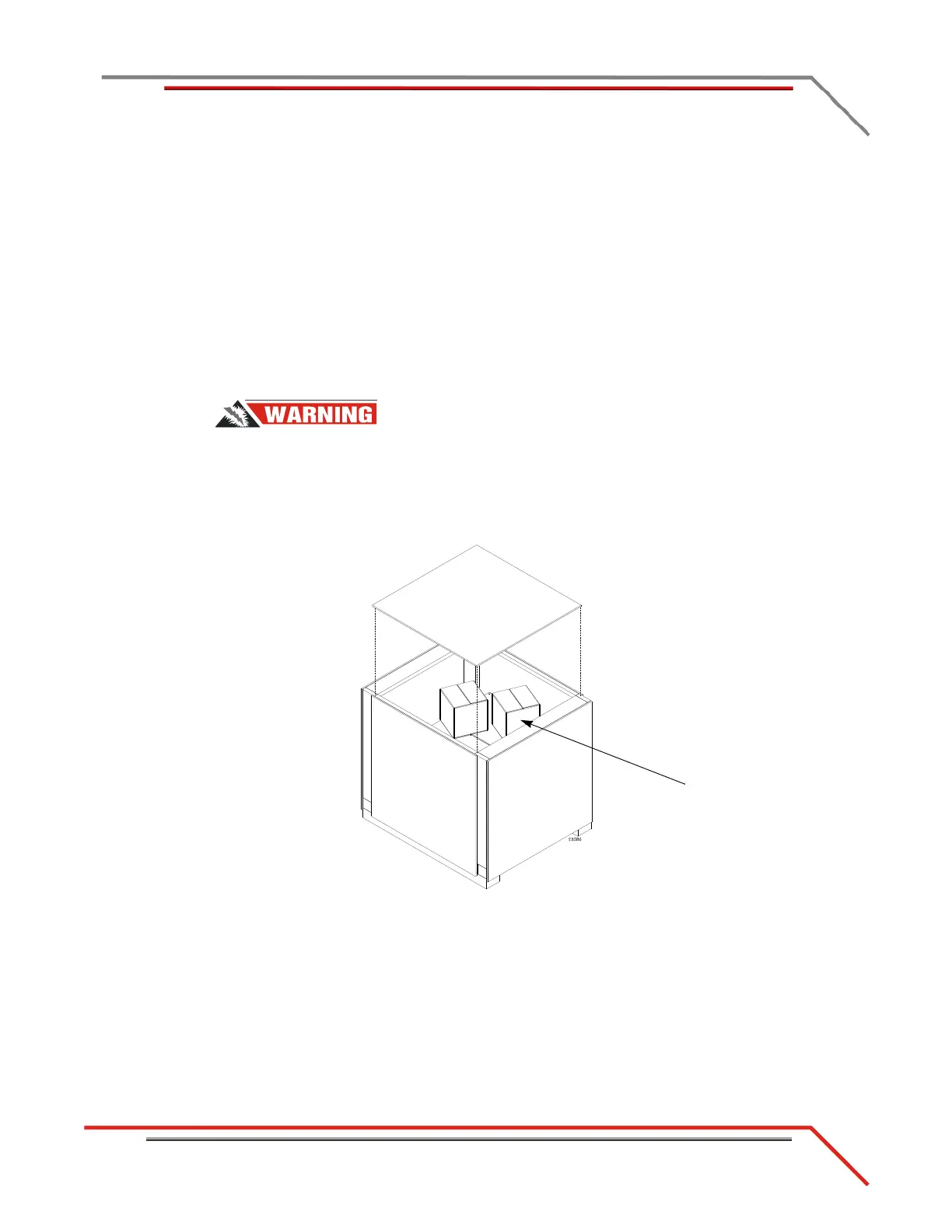

Figure 2-11: Remove the Crate Top
