INSTALLATION
Trike Carriage Adapter and Carriage Assembly
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
TRIKE CARRIAGE ADAPTER AND CARRIAGE ASSEMBLY
Use the following instructions to install the trike carriage adapter assembly, carriage,
tire stop, and tire lock.
You will need the following parts:
• 15331100 Chain Lube
• 36500008 Screw, 5/16-UNC x 1", Button-head (6)
• 36500009 Screw, 3/8-16UNC x 1", Button-head (2)
• 63310902 Tire Stop Assembly
• 71300002 Trike Carriage Adapter Assembly
• 71323002 Carriage Assembly
INSTALLING THE TRIKE CARRIAGE ADAPTER ASSEMBLY
1 Secure the trike carriage adapter assembly to the dyno using six 5/16 x 1-inch
button-head screws where the carriage assembly was installed and two
3/8 x 1-inch button-head screws as shown in Figure 2-37.
2 Lube the tracks with the included lube or use grease.

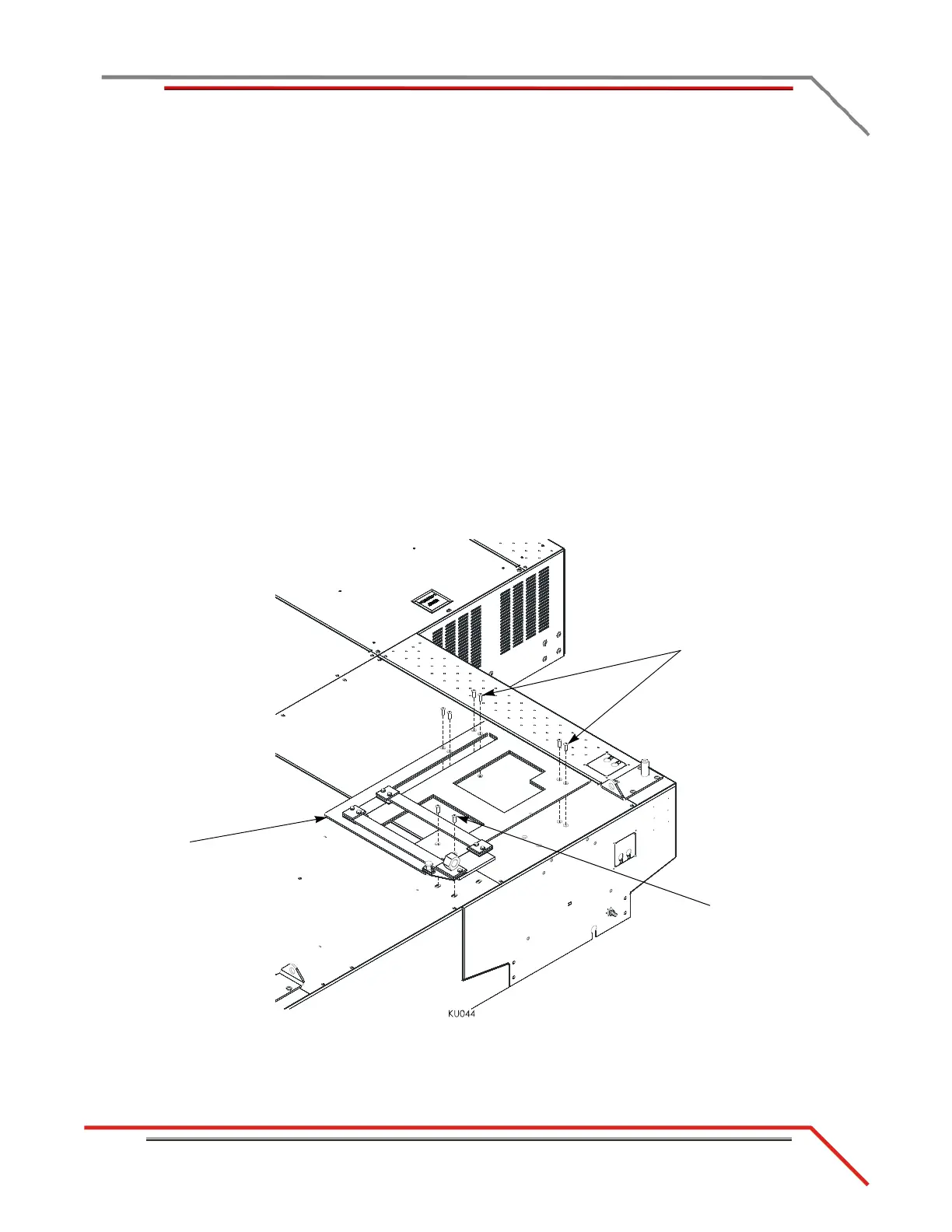

Figure 2-37: Installing the Trike Carriage Adapter Assembly
5/16 x 1-inch bolts
3/8 x 1-inch bolts
trike carriage
adapter assembly
To Next Page
