CHAPTER 2
Side and Top Covers
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-42
INSTALLING THE IX COVERS
You will need the following parts:
• 21200037 Center Cover, iX
• 21200038 Drum Safety Cover
• 36561045 Screw, 1/4-20 x 5/8", Ph, Torx (6)
1 Secure the drum top cover to the drum module using the six 1/4-20 x 5/8-inch
screws removed earlier.
2 Secure the center cover to the bulkheads using six 1/4-20 x 5/8-inch screws.

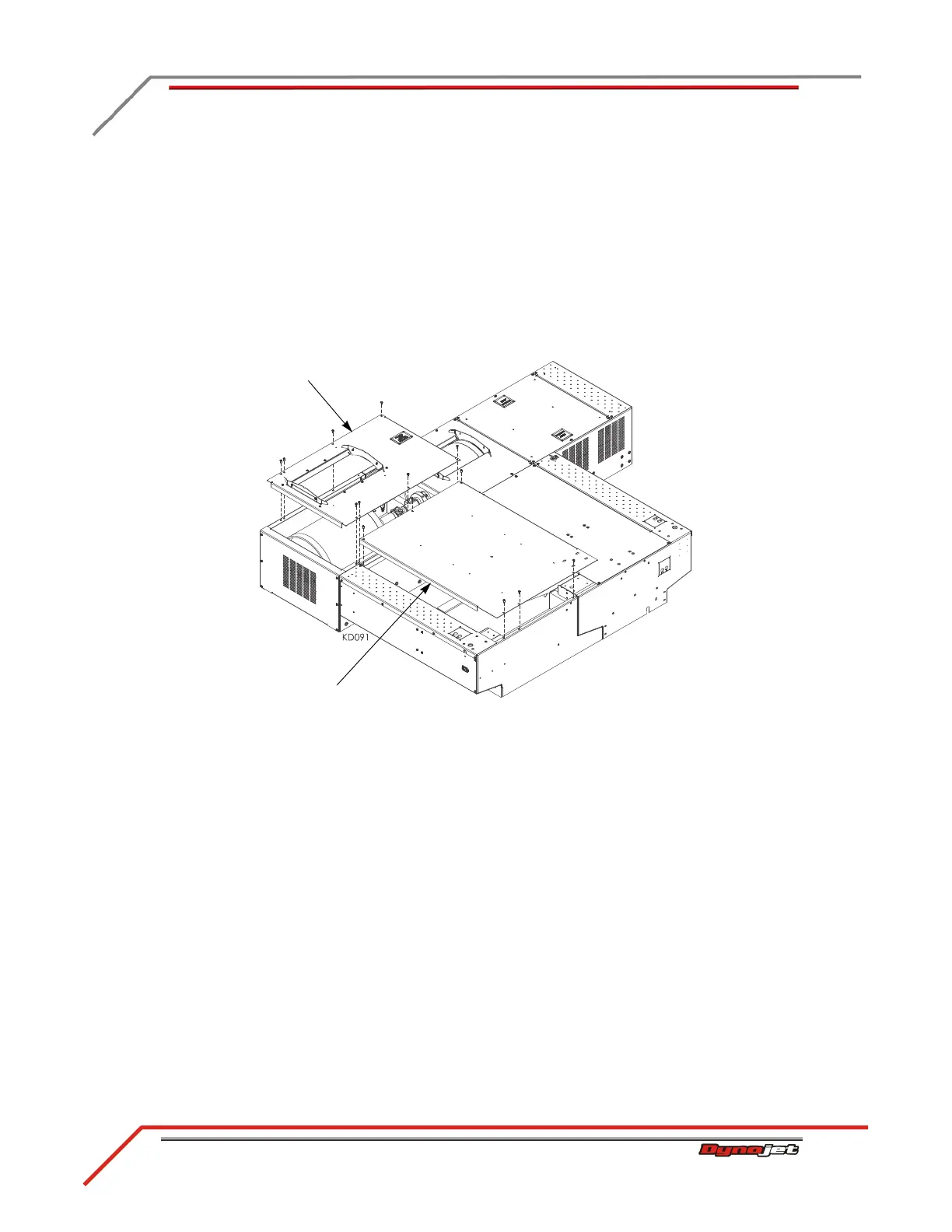

Figure 2-34: Securing Drum Top Cover and Center Cover
center cover
drum top cover
To Next Page
