CHAPTER 2
Side and Top Covers
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-40
SIDE AND TOP COVERS
Before replacing the center panel, be sure to route all your cables and air hoses and
install any additional accessories you purchases.
Note: If this is an iXW upgrade, refer to Appendix E.
1 Secure the eddy current brake side cover to the eddy current brake using the eight
1/4-20 x 5/8-inch screws removed earlier.

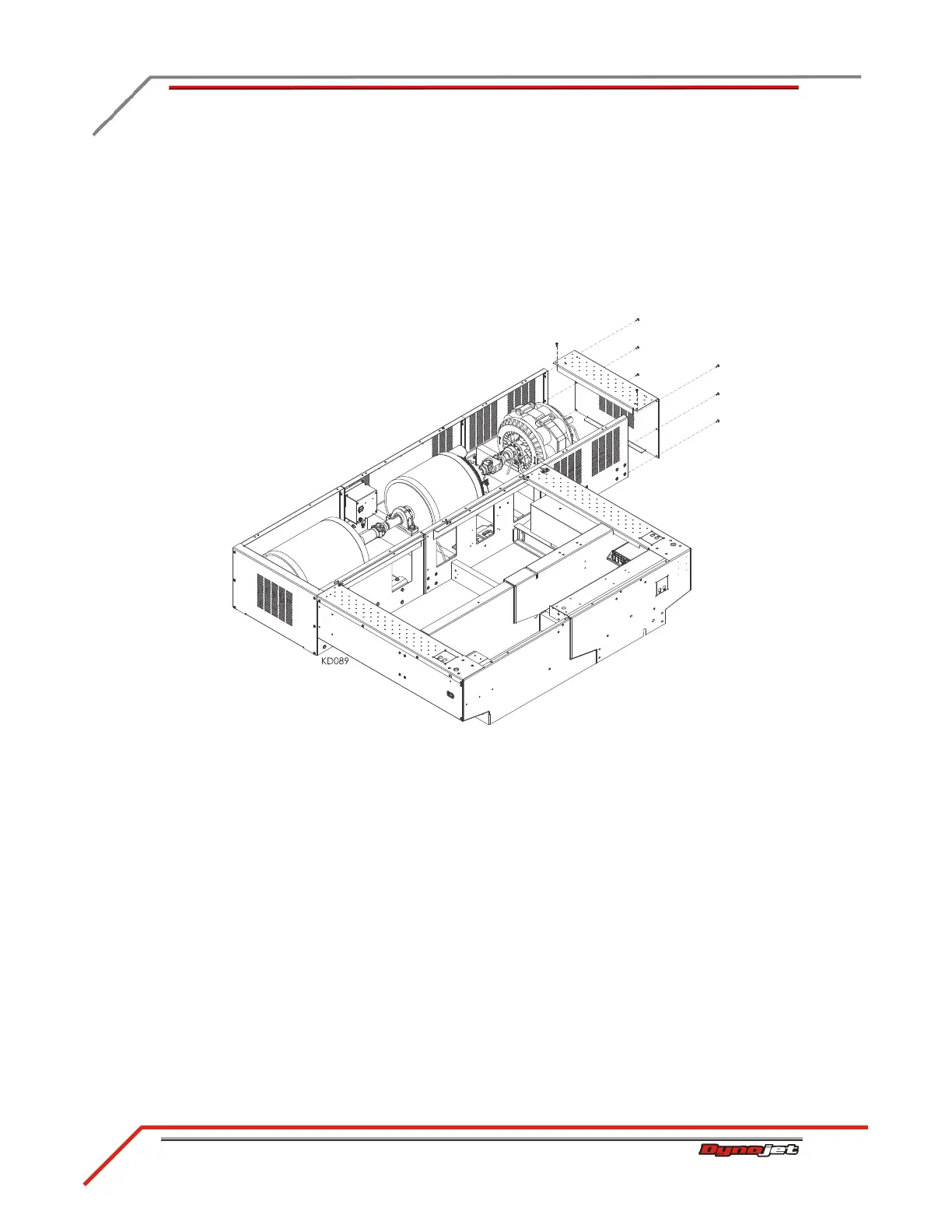

Figure 2-32: Securing the Eddy Current Brake Side Cover
To Next Page
