CHAPTER 4
Maintenance and Troubleshooting
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
4-12
TROUBLESHOOTING CPI FUSES
Fuses F3 and F4 fuse the 240VAC as it enters the CPI board. One fuse is used for each
leg of the 240VAC. If either of these fuses are blown there will be no power to the CPI
board or any of the accessories. The Status Light on the board as well as the button
panel will be off. Replace with a 5x20 mm 3A fast blow fuse.
Fuse F5 provides protection for the DC power that is produced by the on board power
supply and routed to the CPI board. If this fuse is blown there will be no power to the
CPI board or any of the accessories. The Status Light on the board as well as the
button panel will be off. Replace with a 5x20 mm 3A fast blow fuse.
Fuse F6 provides protection for the power that is provided for the 12VDC accessories
from the dyno owner installed car battery. This also protects the charging circuit to the
battery. If this fuse is open the power carriage and the wheel clamp will not function.
Replace with a 15A mini auto fuse.
Fuse F1 protects the wheel clamp drive circuit. If this fuse is open the wheel clamp
motor will not activate. Replace with a 15A mini auto fuse.
Fuse F2 protects the power carriage drive circuit. If this fuse is open the power
carriage motor will not activate. Replace with a 15A mini auto fuse.

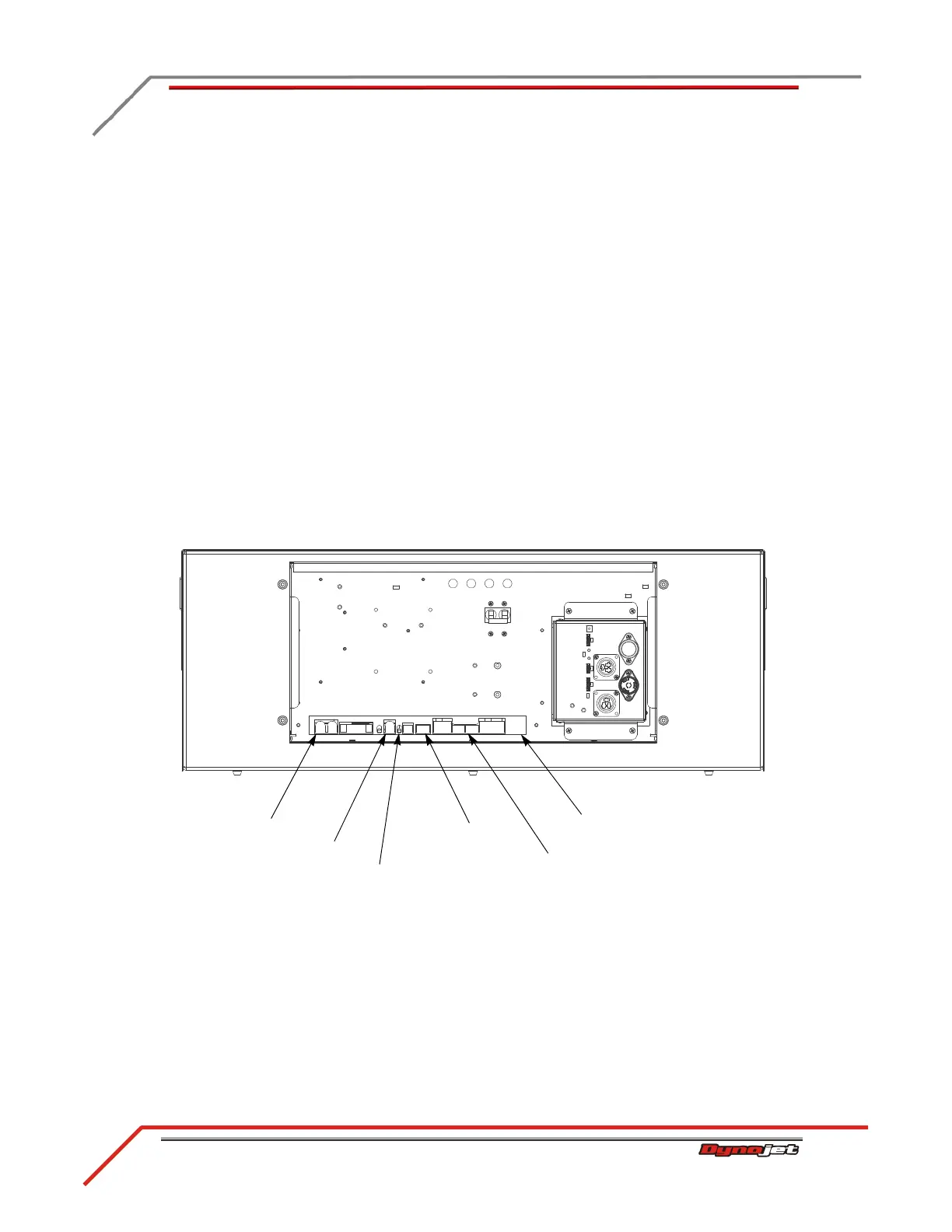

Figure 4-4: CPI Fuses
P232D
F3, F4
F5
status light
F6
F1, F2
control panel
interface board
