iX Drum Module Installation
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
9 Secure the dyno top cover to the bulkheads using the five screws removed earlier.
10 Secure the drum side cover to the drum module using the eight 1/4-20 x 5/8-inch
button-head screws removed earlier.

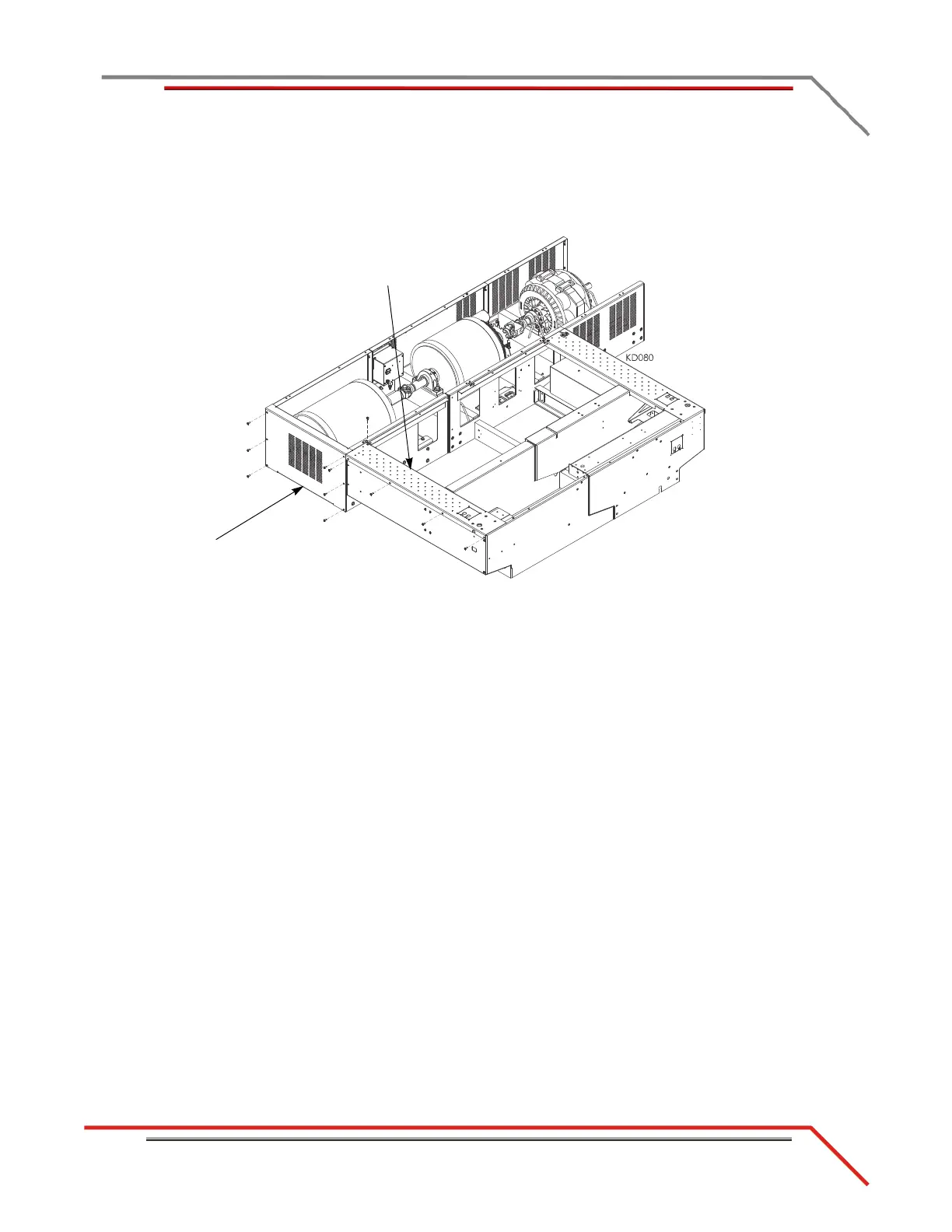

Figure 2-26: Securing the Dyno Top Cover and Drum Side Cover
dyno top cover
drum side cover
