APPENDIX D
Ramp Installation—Dyno
Above Ground Model 200iX/250iX Mot
orc
ycle D
ynamometer Inst
alla
tion Guide
D-6
8
Remove the r
amp by sliding it from the
front of the crate. Dynojet recomm
ends
using two people to rem
ove the ramp from the c
rate.

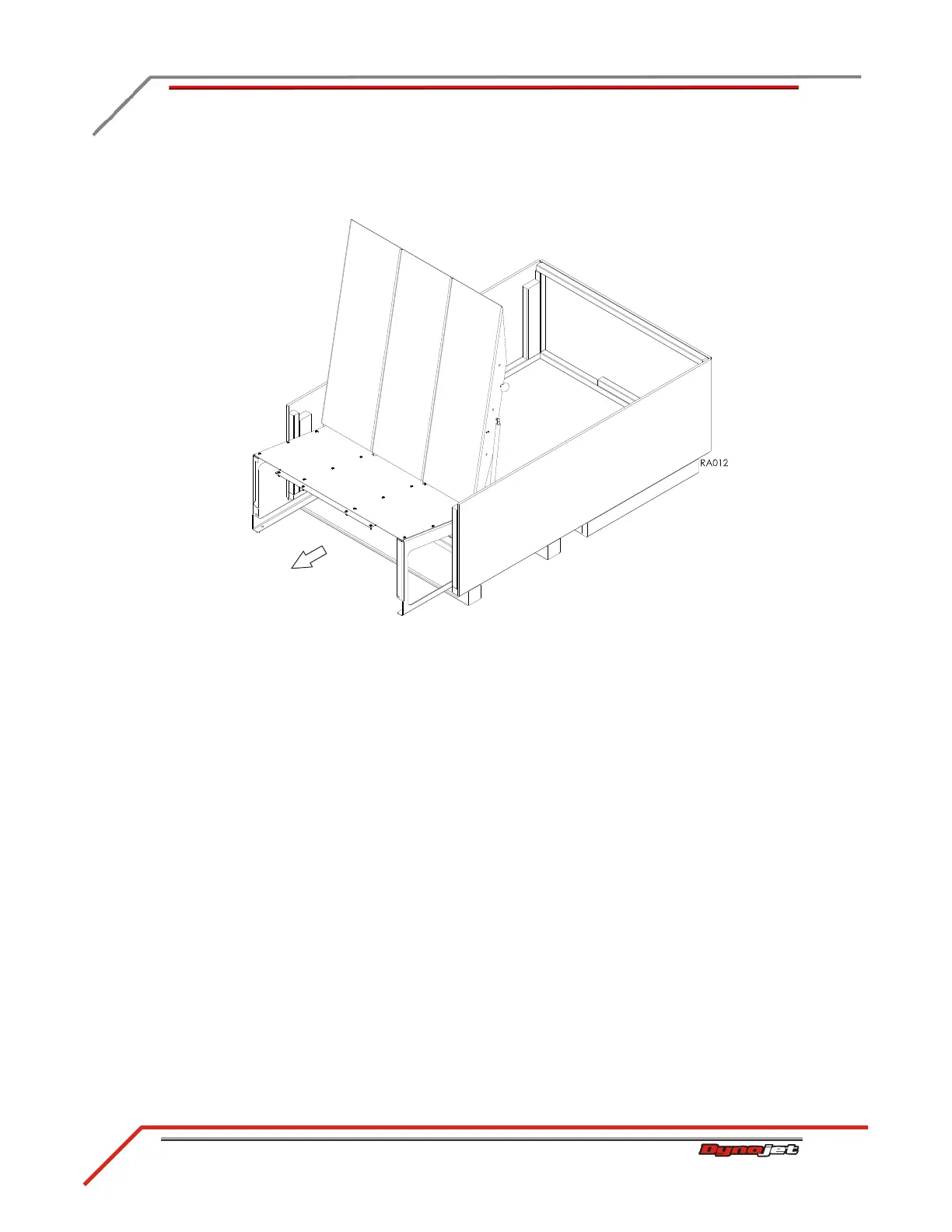

Figure D-6: Remove the Ramp from the Crate
165
167
