ABOVE GROUND IXW INSTALLATION
Above Ground iXW Upgrade Installation
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
4 Remove the crate braces that support the top portion of the crate.
5 Remove the four lag bolts and washers securing the drum to the crate base using a
9/16-inch socket, open or box end wrench.

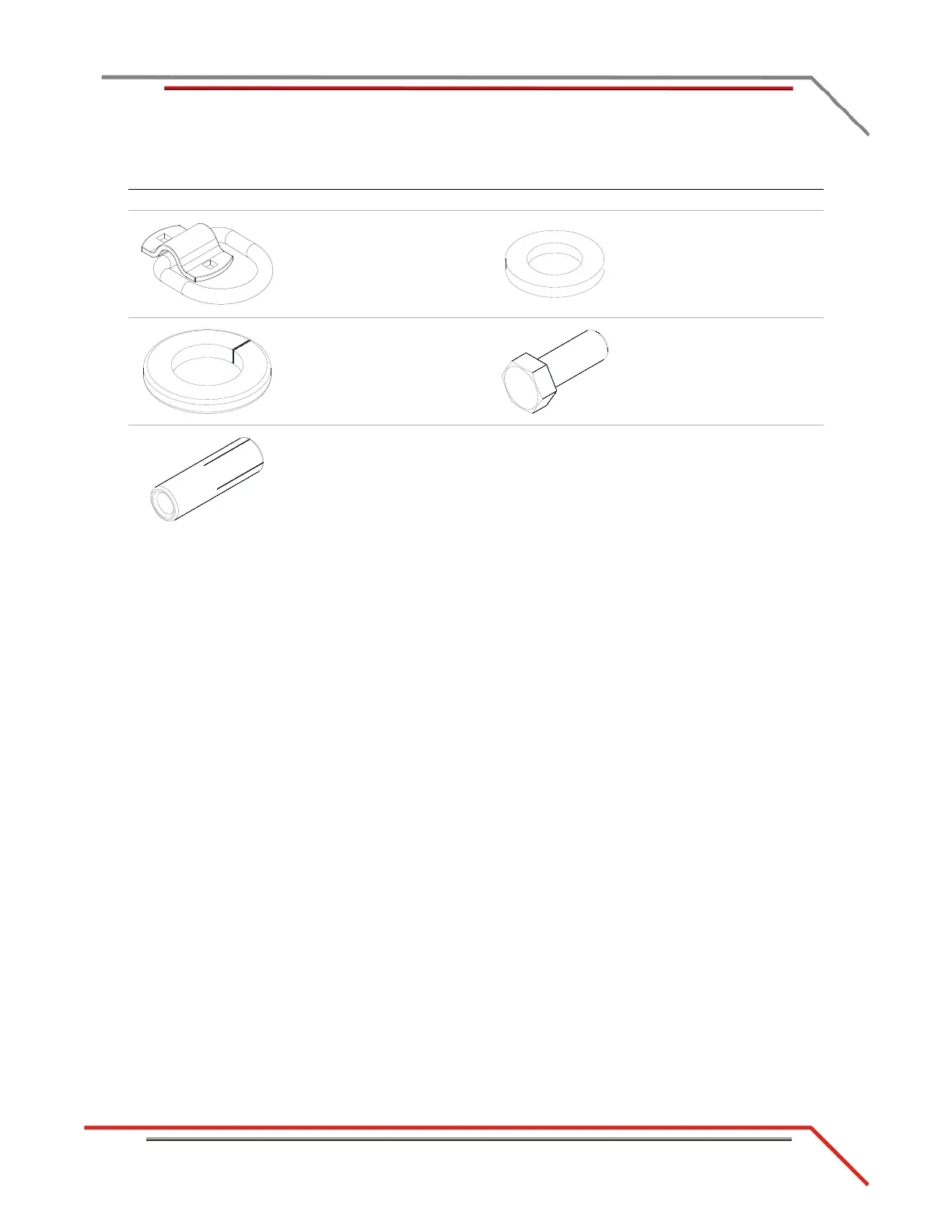

The following parts are included in each Ground Hook Kit P/N 79190001:
ground hook/D-ring
P/N 10111
washer, 5/16", flat (2)
P/N DM150-002-007
washer, 3/8", splitlock,
steel (2)
P/N 36932100
bolt, 3/8-16 x 1", hex (2)
P/N DM150-019-012
anchor, redhead, 3/8" (2)
P/N 37513200
part description part description
