E-9
ABOVE GROUND IXW INSTALLATION
Above Ground iXW Upgrade Installation
Version 2 Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
10 Keeping the panels parallel, slide the drum module towards the dyno. Slide the
driveline over the key on the dyno shaft. You will need to support the driveline as
you slide it onto the dyno shaft.
11 Continue sliding the drum module towards the dyno until the side panels on the
drum module and the dyno are flush.

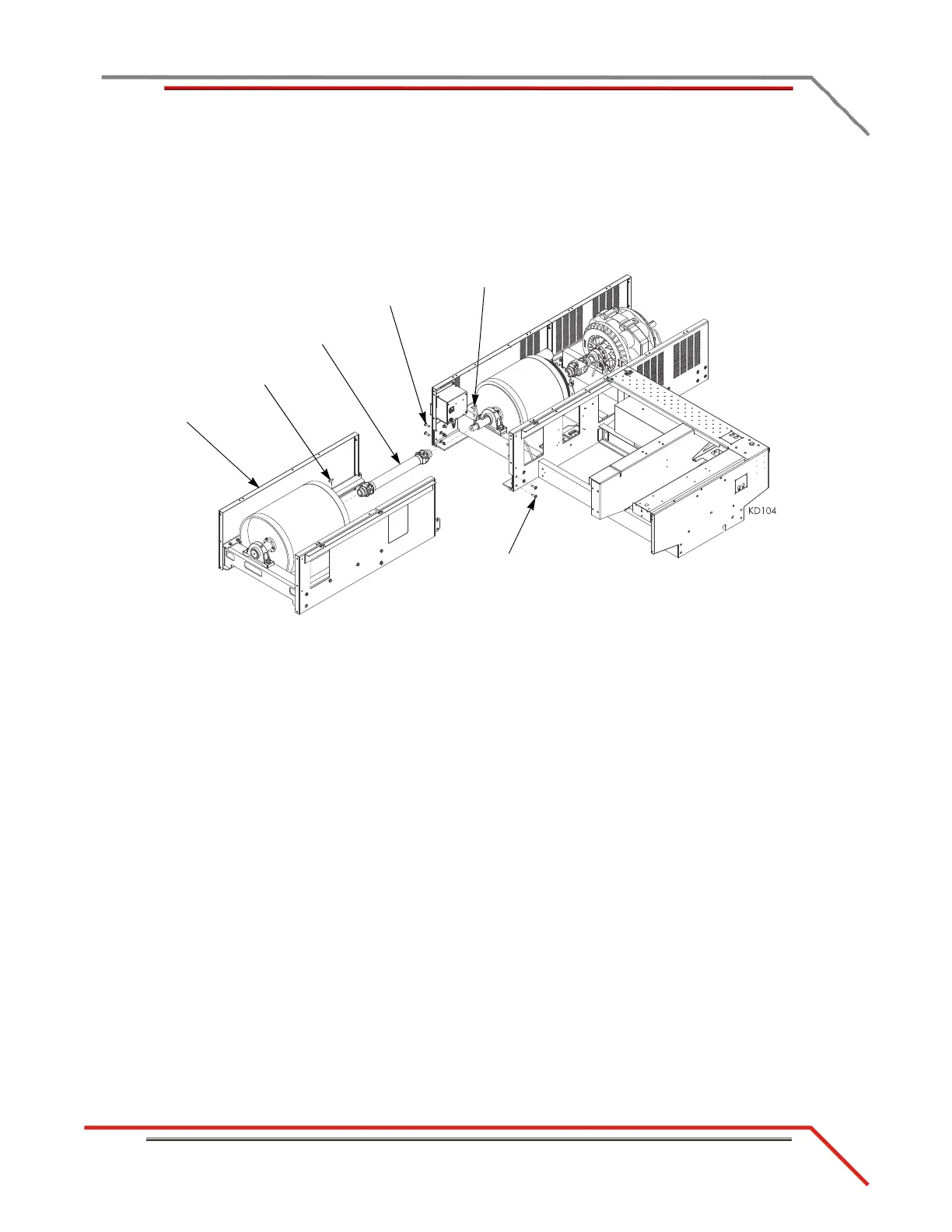

Figure E-3: Install the Driveline and the iXW Drum Module
iXW drum module
driveline
woodruff key
woodruff key
existing screws
existing screws
