INSTALLING THE IXW COVERS
You will need the following parts:
• 21200038 Drum Safety Cover
• 21200205 Left Cover, iXW
• 21200206 Right Cover, iXW
• 36561045 Screw, 1/4-20 x 5/8", Ph, Torx (8)
• 71300004 Drum Top Cover
1 Secure the drum top cover to the iXW drum module using the eight 1/4-20 x 5/8-
inch screws removed earlier.
2 Secure the left iXW cover to the bulkheads using four 1/4-20 x 5/8-inch screws.
3 Secure the right iXW cover to the bulkheads using four 1/4-20 x 5/8-inch screws.

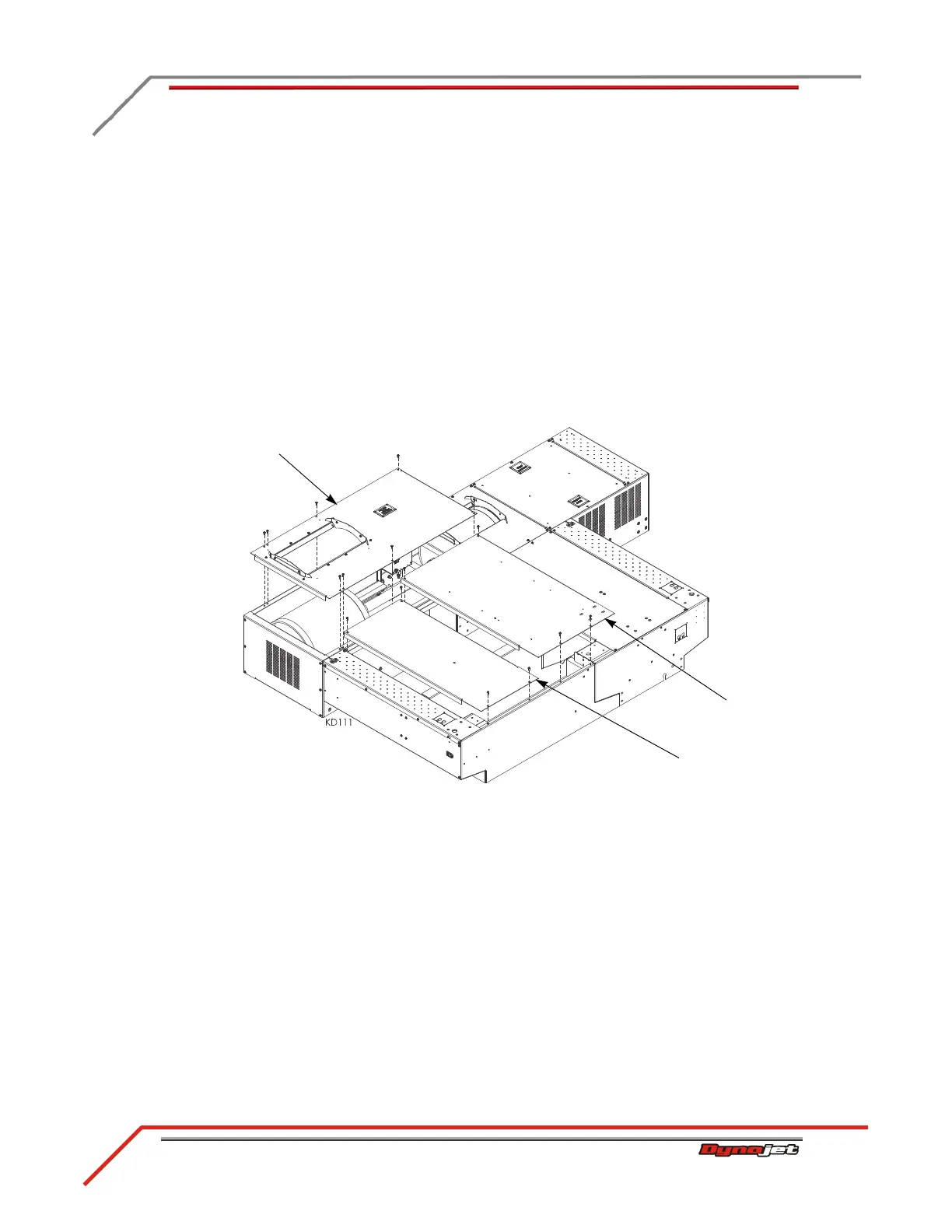

Figure E-10: Securing iXW Covers
right iXW cover
drum top cover
left iXW cover
