CHAPTER 1
DynoWare RT Electronics
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
1-12

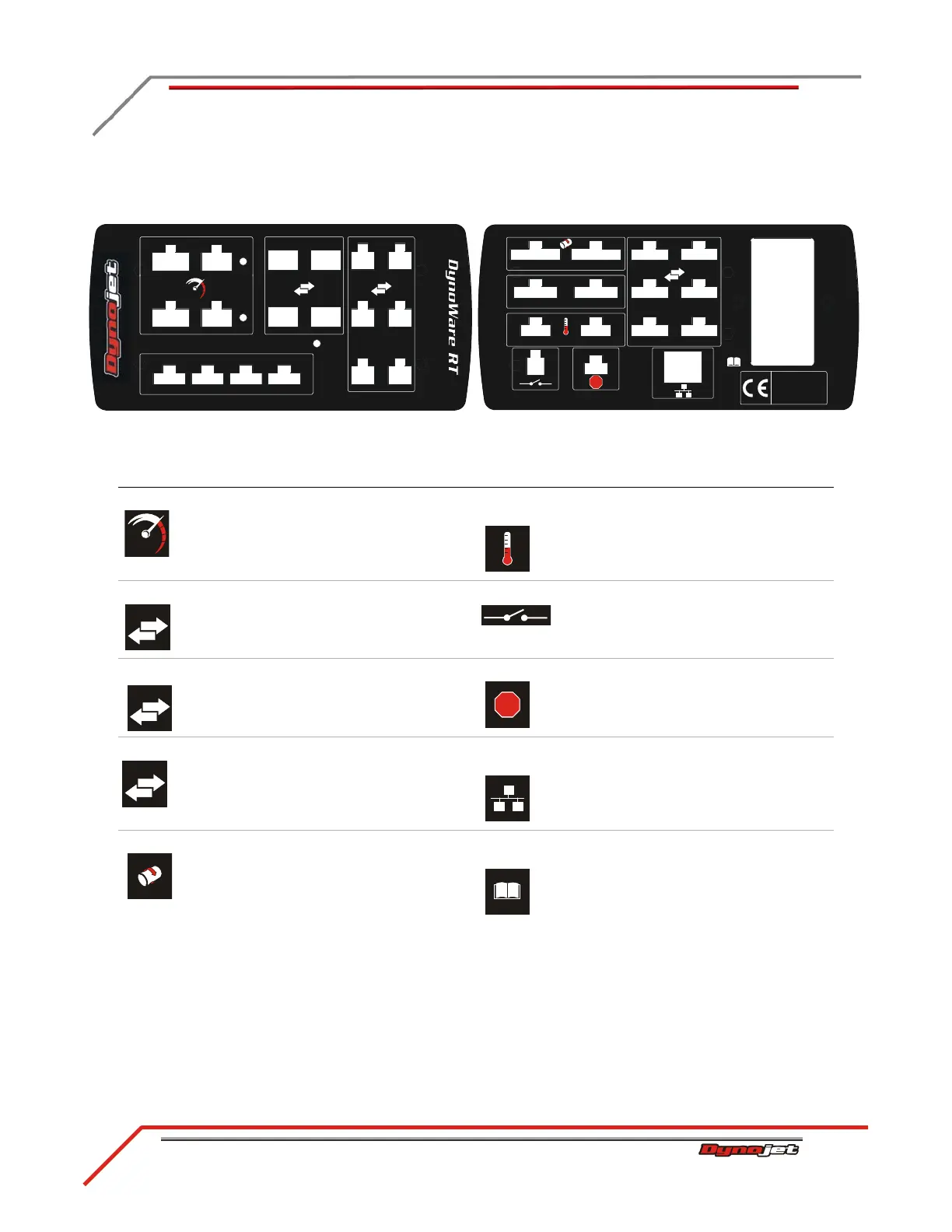

MAIN MODULE CONNECTIONS
A description of the main module symbols and connections follows.
use this port to use this port to
RPM Inputs Connect inductive and optical
RPM inputs.
Auxiliary
Temperature
Connect to an auxiliary input
for an infrared temperature
sensor.
Communication I/O Connect to auxiliary Dynojet
products such as the Power
Commander, Wideband 2,
Power Vision, etc.
Auxiliary Switch Connect to the brake air
pressure switch on 248 and
older 224 dynos.
Communication I/O Connect to auxiliary dyno
electronics such as the
pendant, atmospheric module,
AFR module, etc.
Emergency Stop Connects the dyno electronics
to the emergency stop input on
the 200i/250i dynos.
Communication I/O Connect to internal dyno
electronics and controllers
such as the ECB controller.
Network
Connection
Connects the dyno electronics
to your computer or computer
network.
Drum Connect to the drum 1 and
drum 2 speed inputs and
digital brake outputs.
Refer to
Instructions
Do not press this button unless
instructed to do so by a Dynojet
Technician. This button may
need to be pressed to update
the device.
To Next Page
