CHAPTER 2
Eddy Current Brake
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
2-18
4 Remove the four bolts securing the brake to the crate.
5 Remove the side drum cover, if not already removed, from the dyno.
Refer to Figure 2-4 on page 2-5.
6 Place the nylon loop strap through the lifting eyes on either side of the brake.
7 Using a forklift, lift the eddy current brake from the crate and place the brake near
the dyno making sure the panels on the brake and dyno are parallel.
8 Remove the eight bolts, washers, and nuts from the dyno frame where the
connector plates will attach.

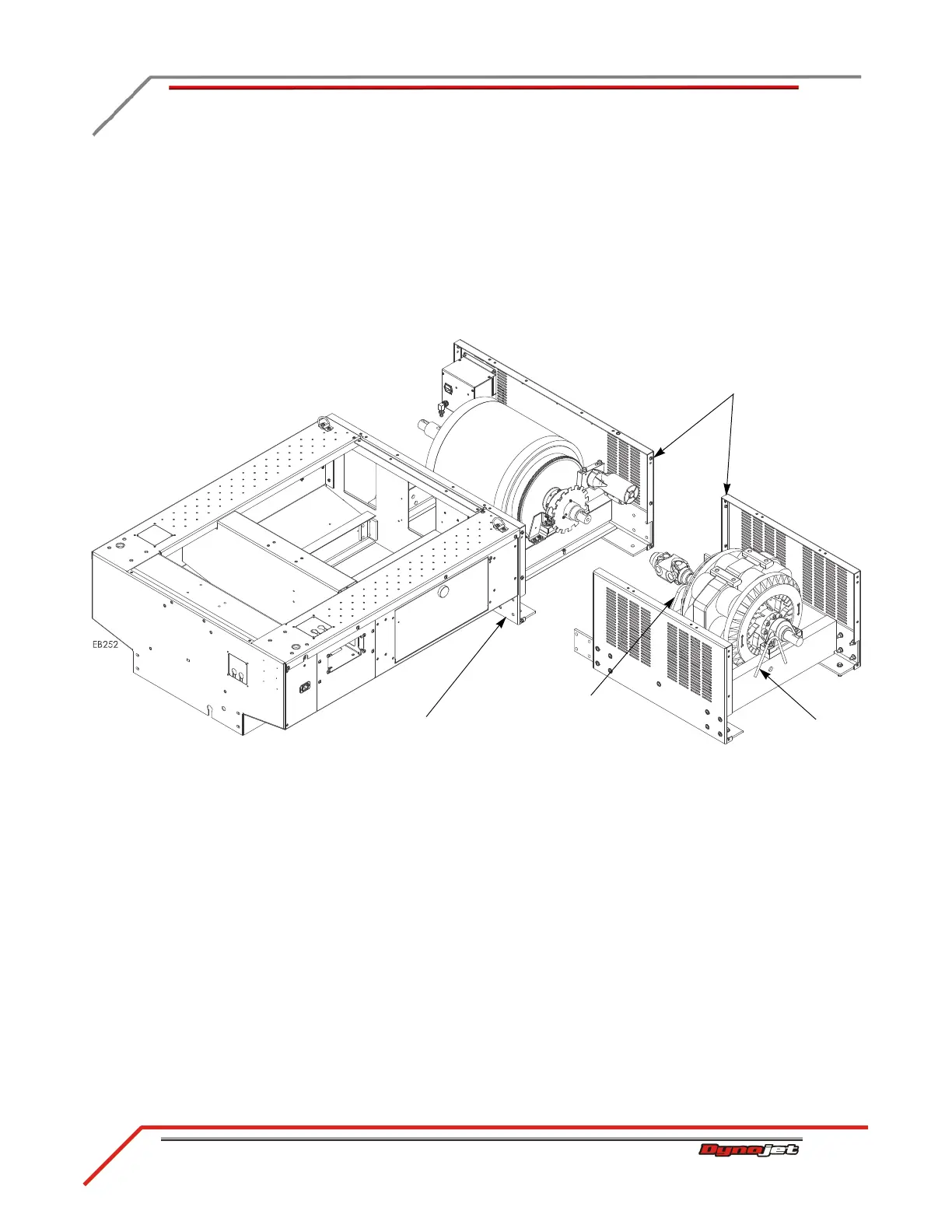

Figure 2-13: Move the Brake Next to the Dyno
lifting eye
lifting eye
line up panels
remove bolts, washers, and
nuts from dyno frame
