CHAPTER 3
Air Brake
Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3-6
2 Remove the Button board.
2a Remove the four screws securing the Button board to the control panel and
set aside.
2b Remove the Button board and set aside.

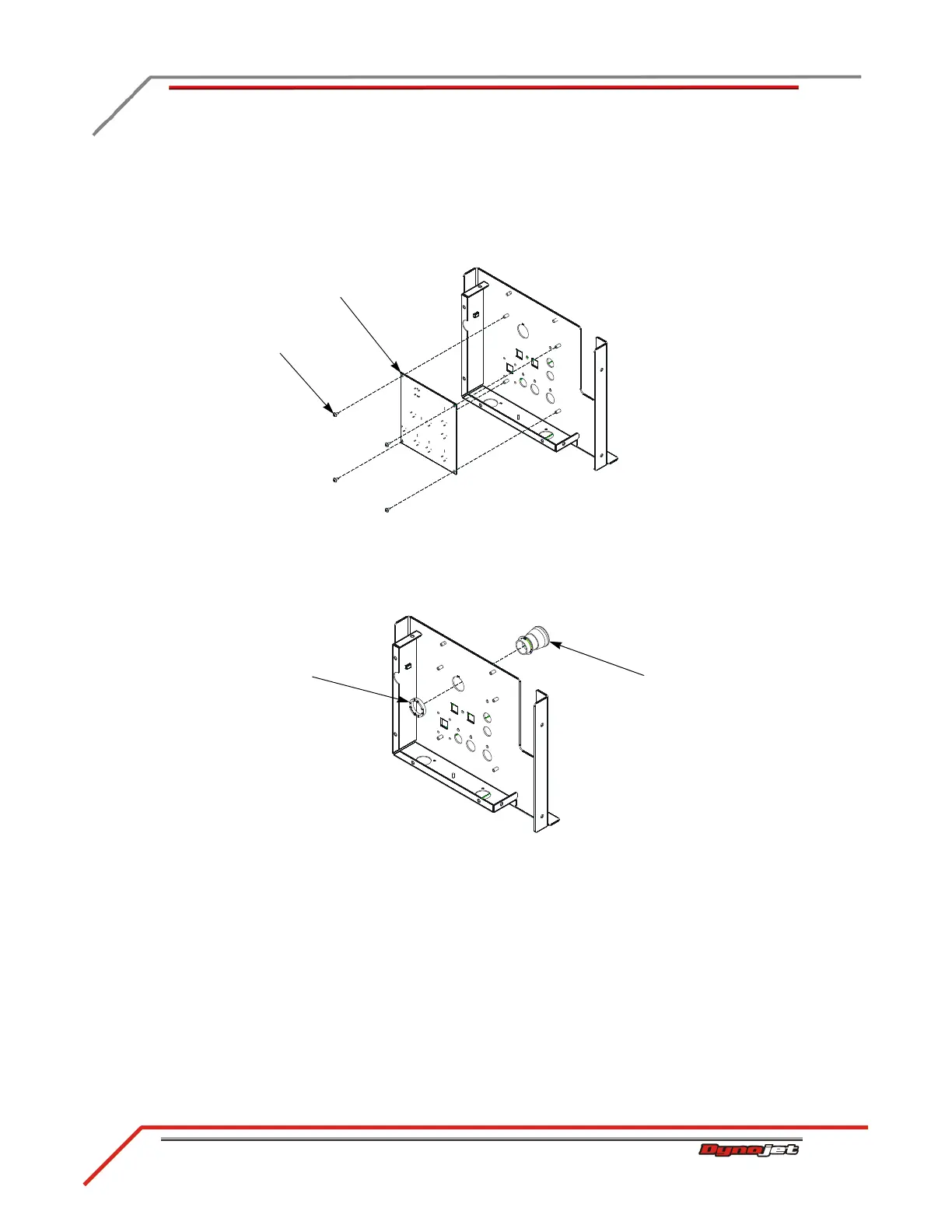

Figure 3-5: Removing the Button Board
3 Unscrew the black switch body nut and remove the switch body. Set the nut and
switch body aside.
Figure 3-6: Removing the Switch Body
CP032
button board
screw
CP033
switch body nut
switch body
