Above Ground Model 200iX/250iX Motorcycle Dynamometer Installation Guide
3-12

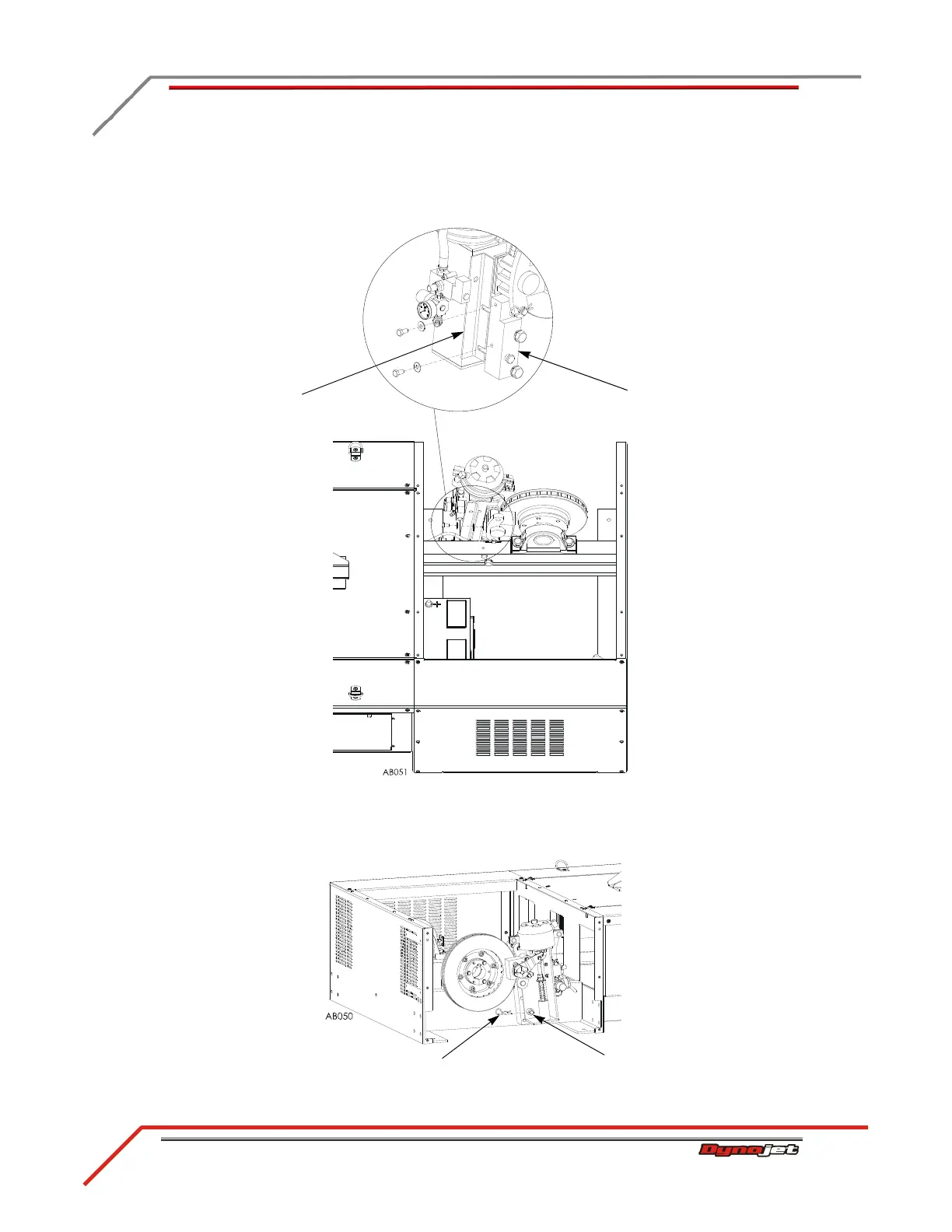

5 Remove the two bolts and two washers securing the brake caliper stop to the brake
bracket and remove the brake caliper stop.
Note: For clarity, the drum and parts of the dyno frame are not shown.
Figure 3-13: Remove the Brake Caliper Stop
6 Remove the hairpin cotter from the bottom clevis pin located on the front of the
air brake assembly.
Figure 3-14: Remove the Bottom Hairpin Cotter
brake caliper stop
brake bracket
bottom clevis pin
hairpin cotter
