4 PKE-SWD-32, interface for motor-starter combination with PKE PKE12/32
4.3 Engineering
100 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com
4.3.5 Measures for higher safety categories
In many applications controls systems compliant with safety category 3 or 4
to EN 954-1 are required. Category 3 control systems can be set up by
means of an additional contactor which is connected in series upstream of
the motor feeder or motor feeders. The control voltage for the contactor and
the control voltage for the motor contactors are switched off in an emer-
gency via the safety relay. This redundant disconnection circuit enables the
implementation of Category 3 control systems. The safety relay used must
comply with Category 3 or higher (e.g. ESR5-NO-41-24VAC-DC) to attain this
safety category.
Main circuit for redundant disconnection of a single drive

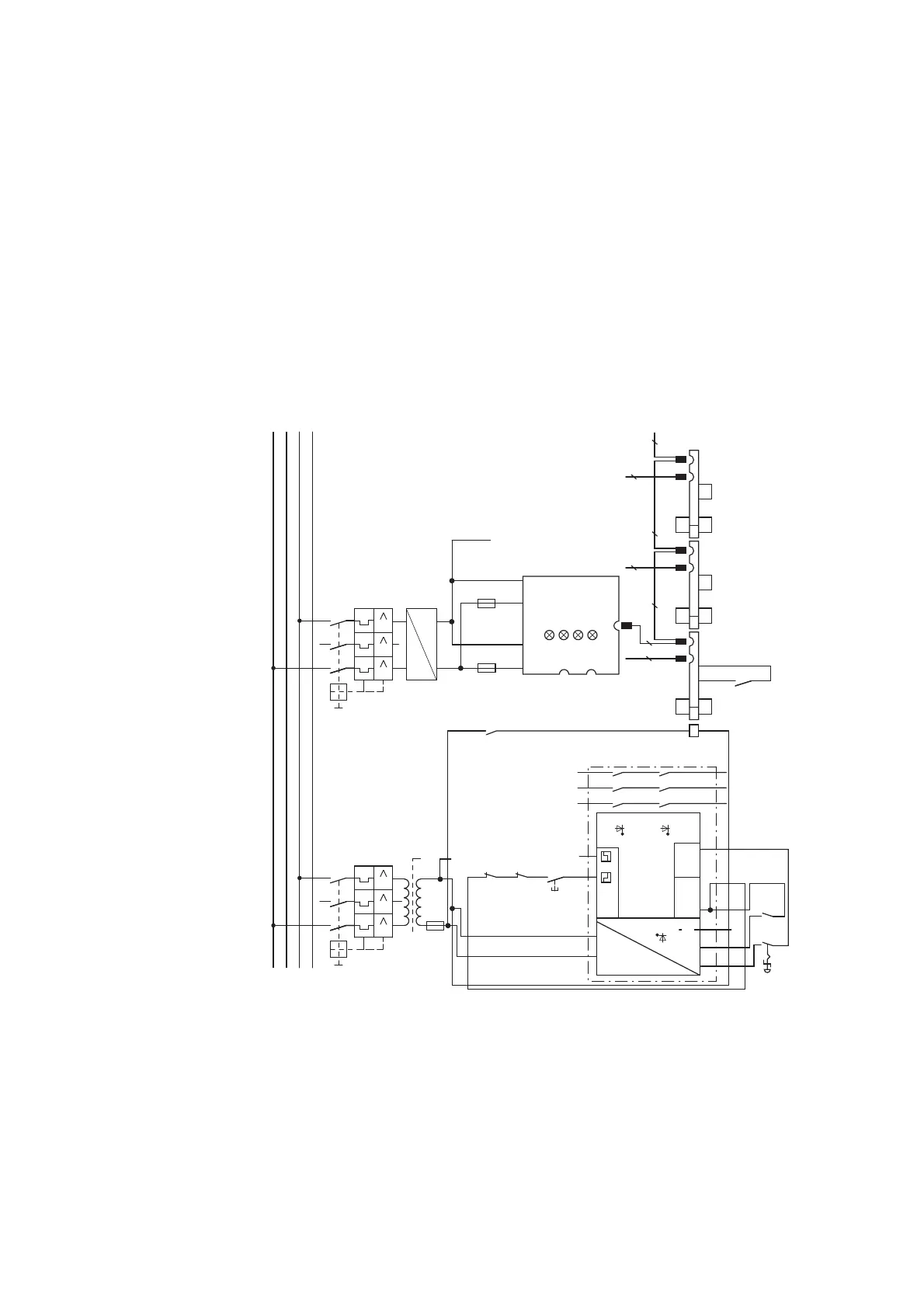

Figure 48: Actuating circuit for redundant disconnection of a single drive
L1
L2 L3 PE
I I I
-Q1
-K02
-T01
-K01
-F01
K1
-S02
-Q11 -Q16
-Q16
I I I
-Q1
400 0
e
e
e e
e
-F02
24 V 0 V 24 V
0 V
24 0
-F03
13
14
13
14
21
22
21
22
A1 A2
S34 S35
13 14
CH1 CH2
K1
23 24
33 34
2~
H
-Q11
A1 A2
A1 A2 X4X3
-Q12
A1 A2 X3 X4
-Q13
A1 A2 X3 X4
8
8 8
+++––
-S01 f
1.211.13 1.221.14
RESET
RESET
POWER
SWD
In NET
Gateway
Out
Out
Config Bus Power
POW AUX
8
Safety Control-Logic
10
10 10
-K01
23
24
NOT AUS
