4 PKE-SWD-32, interface for motor-starter combination with PKE PKE12/32
4.4 Installation
106 SmartWire-DT module IP20 01/20 MN05006001Z-EN www.eaton.com

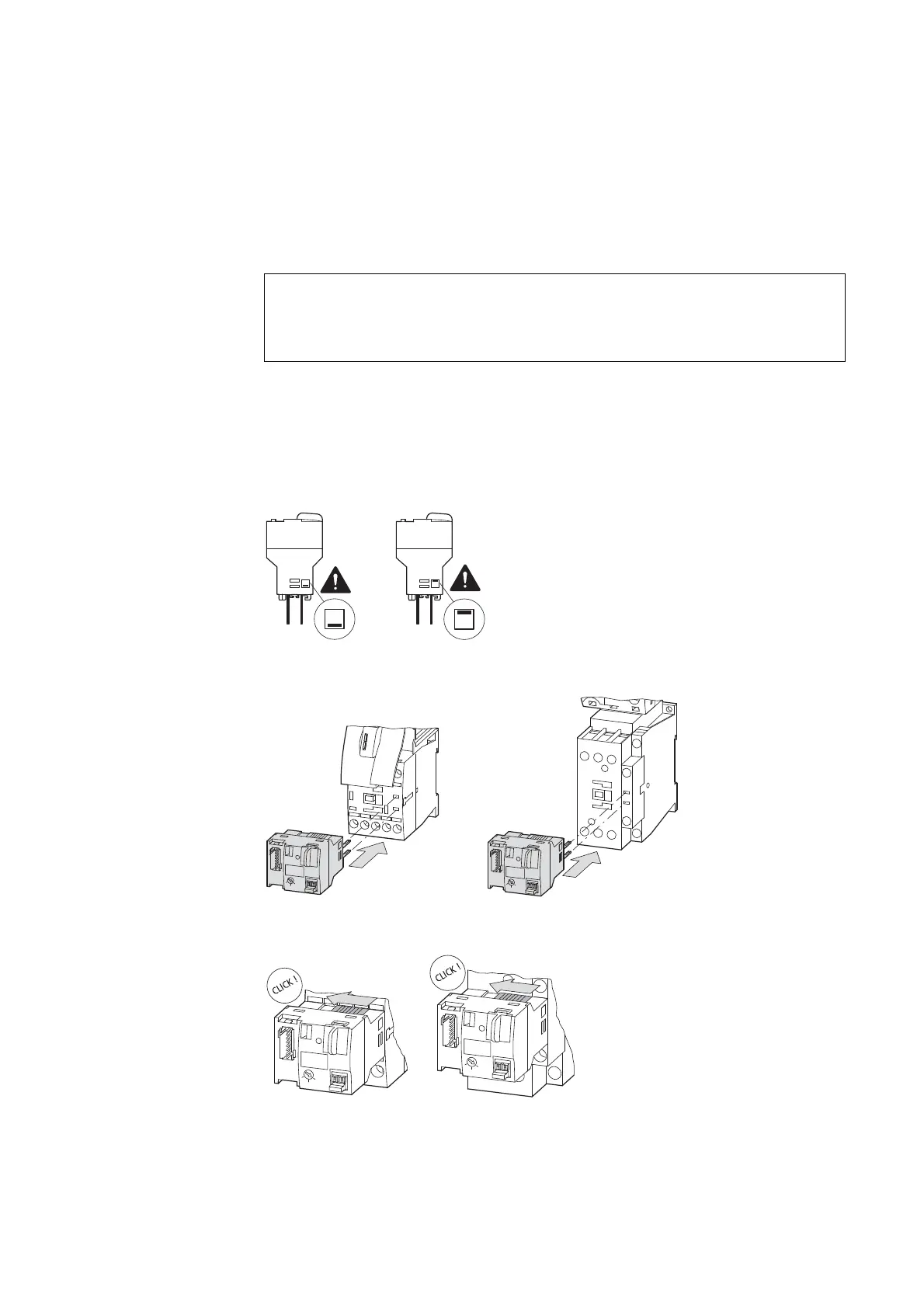

4.4.2 Mounting PKE-SWD-32
The PKE-SWD-32 must be adapted to the relevant contactor size before it is
fitted. The necessary settings are made via the slide adjuster of the PKE-
SWD-32.
▶ Set the slide adjuster of the PKE-SWD-32 for the appropriate contactor.
The settings of the slide adjuster have the following settings for different
contactor sizes:
• Position bottom: DILM7, DILM9, DILM12, DILM15 (state of delivery)
• Position top: DILM17, DILM25 and DILM32
▶ Set the PKE-SWD-32 for the appropriate contactor.
▶ Interlock the PKE-SWD-32.
▶ Remove the cover of the communication interface.
ACHTUNG
The PKE-SWD-32 may be installed and detached only after the
control voltage and supply cable have been switched off.
