3.3.5 Measures for higher safety categories
In many applications controls systems compliant with safety category 3 or 4
to EN 954-1 are required. Controllers of category 3 can be set up by means of
an additional group contactor which is connected in series upstream of the
motor junctions. In an emergency the control voltage for the motor contac-
tors and for the group contactor are switched off via the safety relay. This
redundant disconnection circuit enables the implementation of Category 3
control systems. The safety relay used must comply with Category 3 or
higher (e.g. ESR5-NO-31-24VAC-DC) to attain this safety category.

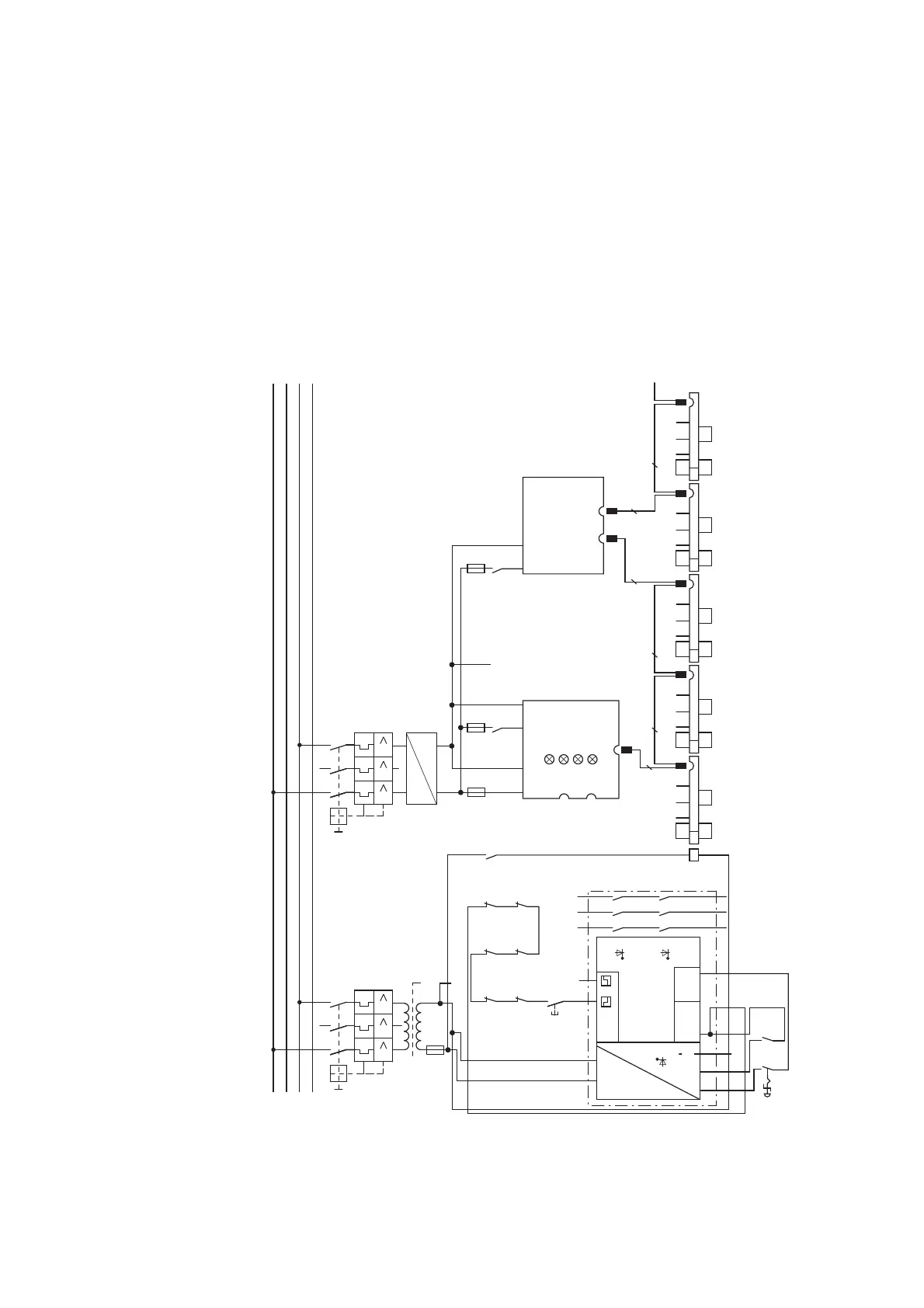

Figure 33: Actuating circuit for redundant switch-off
L1
L2 L3 PE
III
-Q1
-K02
-K01
-T01
-K01
-F01
K1
-S02
-Q15 -Q16
-Q16
III
-Q1
400 0
e
e
e e
e
-F02
24 V 0 V 24 V
0 V
24 0
-K03
-F03
13
14
13
14
21
22
21
22
A1 A2
S34 S35
13 14
CH1 CH2
K1
23 24
33 34
2~
H
-K01
24 V
0 V
-F04
23
24
33
34
-Q11
A1 X0 X1 X2 A2
A1 A2 X3 X4
-Q12
A1 X0 X1 X2 A2 X3 X4
-Q13
A1 X0 X1 X2 A2 X3 X4
-Q14
A1 X0 X1 X2 A2 X3 X4
-Q15
A1 X0 X1 X2 A2 X3 X4
8
8
8 8 8
-Q14 -Q13
22
21
22
21
-Q11 -Q12
21
22
21
22
+ + + – –
-S01 f
1.21 1.13 1.22 1.14
RESET
RESET
POWER
CONTROL-LOGIC
SWD
In NET
Gateway Power-Feeder
SmartWire-DT
Out
Out
Out In
Config Bus
Power
AUX
POW AUX
8
NOT-AUS
